APPLICATIONS

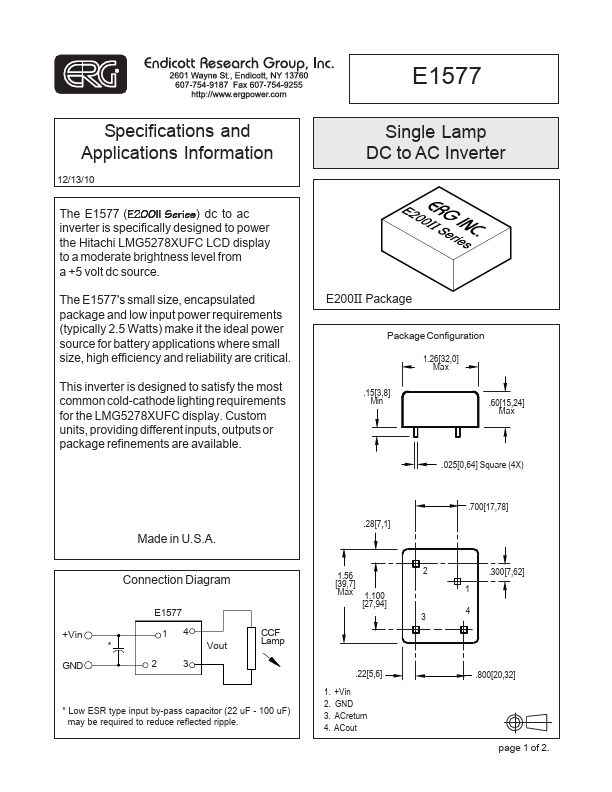

Information 12/13/10 Custom units, providing different inputs, outputs or package refinements are available. Single Lamp DC to AC Inverter E200II Package Package Configuration 1.2M6[a3x2,0] .15M[3in,8] .60M[1a5x,24] .025[0,64] Square (4X) Made in U.S.A. Connection Diagram +Vin * GND E1577 14 2 3 Vout CLaCmFp * Low ESR type input by-pass capacitor (22 uF - 100 uF) may be required to reduce reflected ripple. .28[7,1] [31M9.5a,67x] [217.1,9040] 2 3 .22[5,6] 1. +Vin 2. GND 3. ACreturn 4. ACout .700[17,78] .300[7,62] 1 4 .800[20,32] page 1 of 2. E1577 ABSOLUTE MAXIMUM RATINGS
Rating Symbol Value Units Input Voltage Range V in -0.3 to +5.5 Vdc Storage Temperature T stg -40 to +85 oC Operating Characteristics With the referenced display and lamp warm-up of 5 minutes. Unless otherwise noted Vin = 5.00 Volts dc and Ta = 25oC. Characteristic Symbol Min Typ Max Units Input Voltage Component surface Temperature (note 1) Input Current (note 2) Operating Frequency Minimum Output Voltage...
