E1941
E1941 is Single Tube DC to AC Inverter manufactured by ERG.

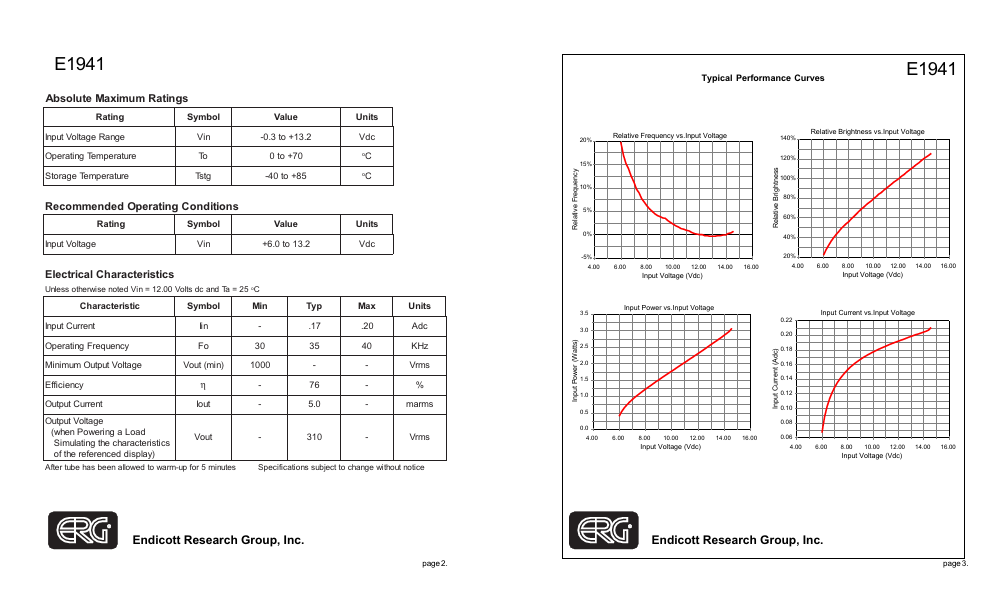

Relative Brightness
140%

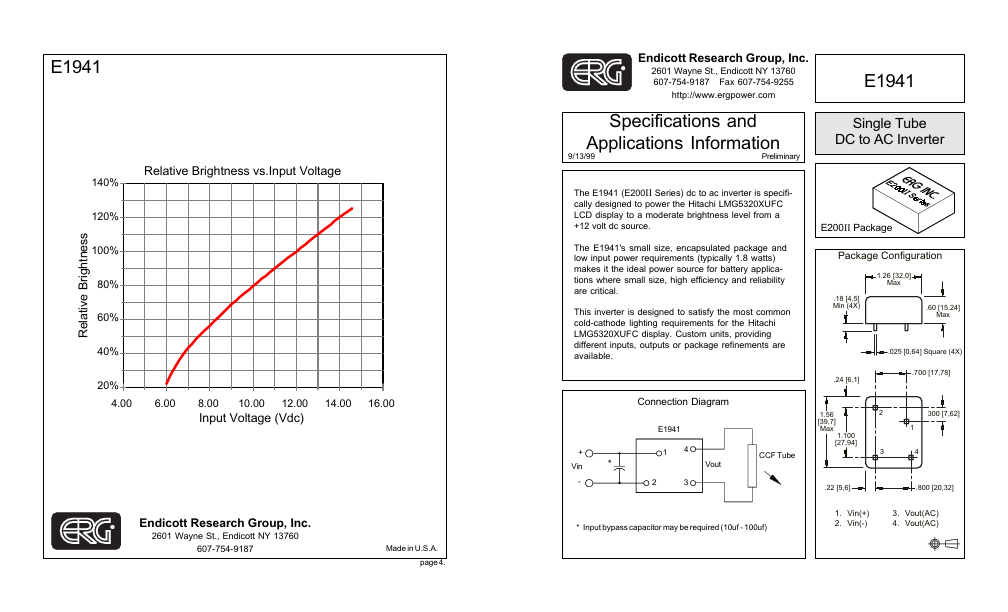

Relative Brightness vs.Input Voltage
120%
100%
80%
60%
40%
20%
4.00 6.00 8.00 10.00 12.00 14.00 16.00
Input Voltage (Vdc)
Endicott Research Group, Inc.
2601 Wayne St., Endicott NY 13760 607-754-9187
Made in U.S.A. page 4.
Endicott Research Group, Inc.
2601 Wayne St., Endicott NY 13760 607-754-9187 Fax 607-754-9255 http://.ergpower.
Specifications and
Applications Information
9/13/99
Preliminary
Single Tube DC to AC Inverter
The E1941 (E200II Series) dc to ac inverter is specifically designed to power the Hitachi LMG5320XUFC LCD display to a moderate brightness level from a +12 volt dc source.
The E1941's small size, encapsulated package and low input power requirements (typically 1.8 watts) makes it the ideal power source for battery applications where small size, high efficiency and reliability are critical.
This inverter is designed to satisfy the most mon cold-cathode lighting requirements for the Hitachi LMG5320XUFC display. Custom units, providing different inputs, outputs or package refinements are available.
Connection Diagram
+
Vin
- -
E1941...
