APPLICATIONS

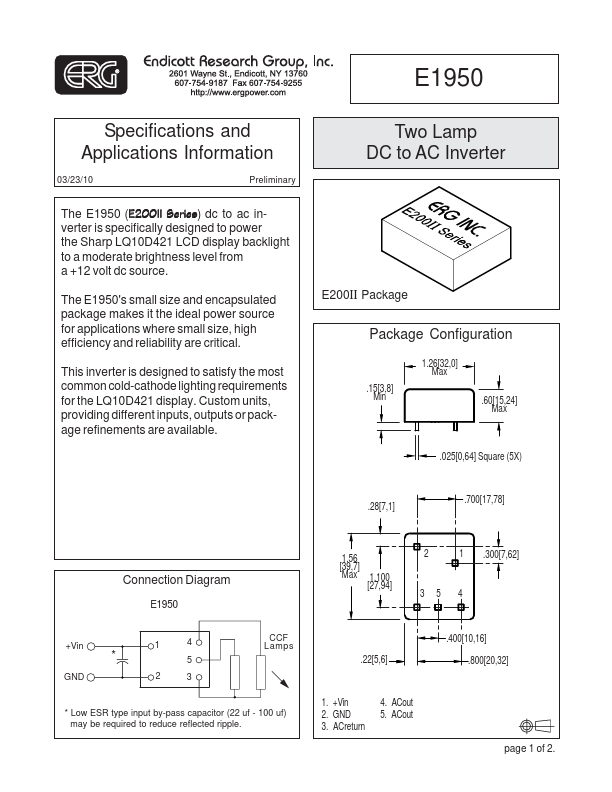

Information 03/23/10 Preliminary Two Lamp DC to AC Inverter Custom units, providing different inputs, outputs or package refinements are available. E200II Package Package Configuration .15[3,8] Min 1.26[32,0] Max .60[15,24] Max .025[0,64] Square (5X) .28[7,1] .700[17,78] Connection Diagram E1950 +Vin * GND 1 4 5 2 3 CCF Lamps * Low ESR type input by-pass capacitor (22 uf - 100 uf) may be required to reduce reflected ripple. 1.56 [39,7] Max 1.100 [27,94] 2 1 .300[7,62] 35 4 .22[5,6] .400[10,16] .800[20,32] 1. +Vin 2. GND 3. ACreturn 4. ACout 5. ACout page 1 of 2. E1950 ABSOLUTE MAXIMUM RATINGS

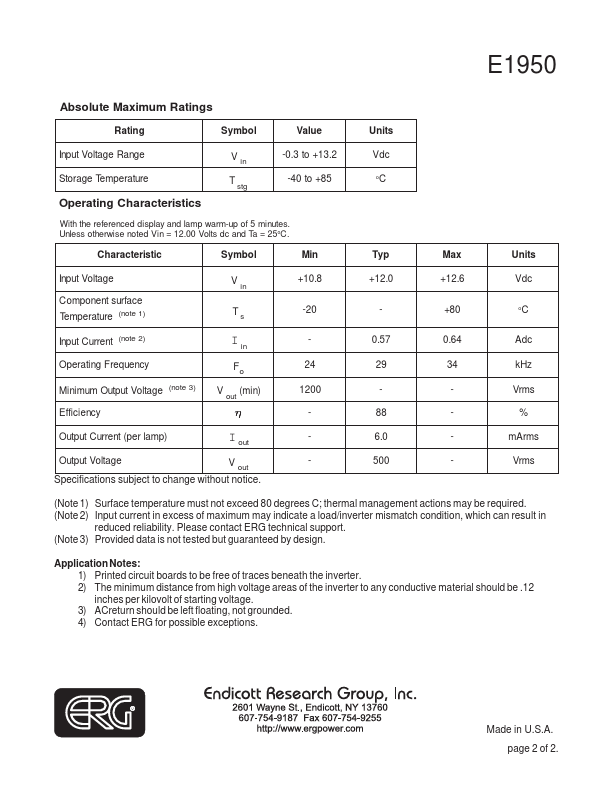

Rating Symbol Value Units Input Voltage Range V in -0.3 to +13.2 Vdc Storage Temperature T stg -40 to +85 oC Operating Characteristics With the referenced display and lamp warm-up of 5 minutes. Unless otherwise noted Vin = 12.00 Volts dc and Ta = 25oC. Characteristic Symbol Min Typ Max Units Input Voltage Component surface Temperature (note 1) Input Current (note 2) Operating Frequenc...
