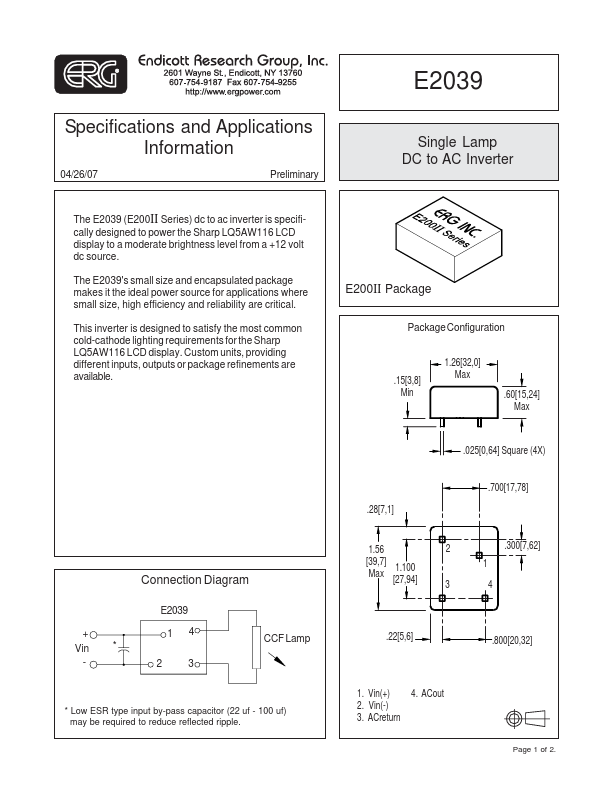

Information 04/26/07 Preliminary E2039 Single Lamp DC to AC Inverter Custom units, providing different inputs, outputs or package refinements are available. E200II Package Package Configuration .15[3,8] Min 1.26[32,0] Max .60[15,24] Max Connection Diagram + Vin * - E2039 14 2 3 CCF Lamp * Low ESR type input by-pass capacitor (22 uf - 100 uf) may be required to reduce reflected ripple. .025[0,64] Square (4X) .28[7,1] .700[17,78] 1.56 2 [39,7] Max 1.100 [27,94] 3 .300[7,62] 1 4 .22[5,6] .800[20,32] 1. Vin(+) 4. ACout 2. Vin(-) 3. ACreturn Page 1 of 2. E2039 ABSOLUTE MAXIMUM RATINGS

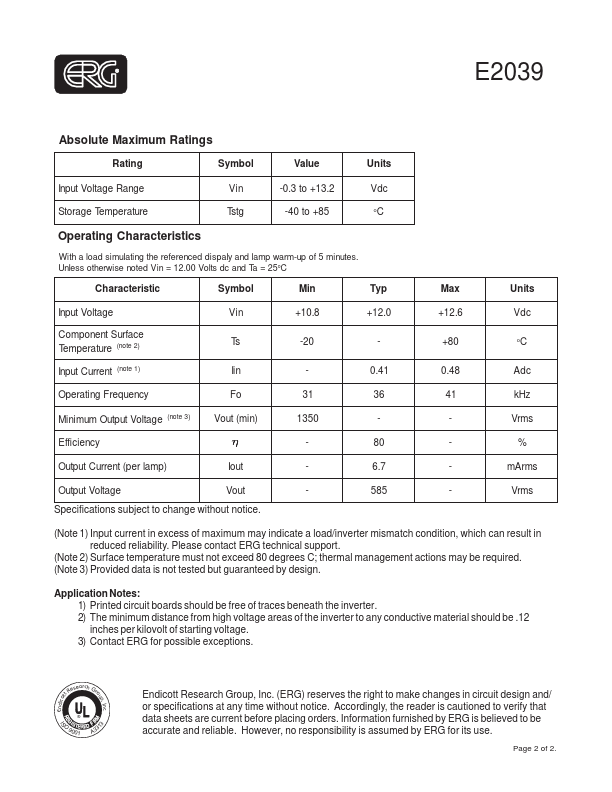

Rating Symbol Value Units Input Voltage Range Vin -0.3 to +13.2 Vdc Storage Temperature Tstg -40 to +85 oC Operating Characteristics With a load simulating the referenced dispaly and lamp warm-up of 5 minutes. Unless otherwise noted Vin = 12.00 Volts dc and Ta = 25oC Characteristic Symbol Min Typ Max Units Input Voltage Component Surface Temperature (note 2) Input Current (note 1) Vin +10.8 +12.0...
