E2322 - Single Tube DC to AC Inverter

📥 Download Datasheet

Datasheet preview – E2322

Datasheet Details

Part number E2322
Manufacturer ERG
File Size 31.98 KB
Description Single Tube DC to AC Inverter
Datasheet download datasheet E2322 Datasheet
Additional preview pages of the E2322 datasheet.

📁 Similar Datasheet

  • E232 - n-channel JFET (Siliconix)
  • E230 - n-channel JFET (Siliconix)
  • E231 - n-channel JFET (Siliconix)
  • E2314H - (E2214H / E2214H) Users Guide (DELL)
  • E235L - Pentode (Siemens)
  • E235L - Pentode (TELEFUNKEN)
  • E235L - Pentode (CBS)
  • E235L - S.Q. Tube (Philips)
  • E235x - PAL Format Electronic Television Modulators (Sharp Electrionic Components)
  • E236L - Pentode (Siemens)
Other Datasheets by ERG

    Full PDF Text Transcription

    Click to expand full text

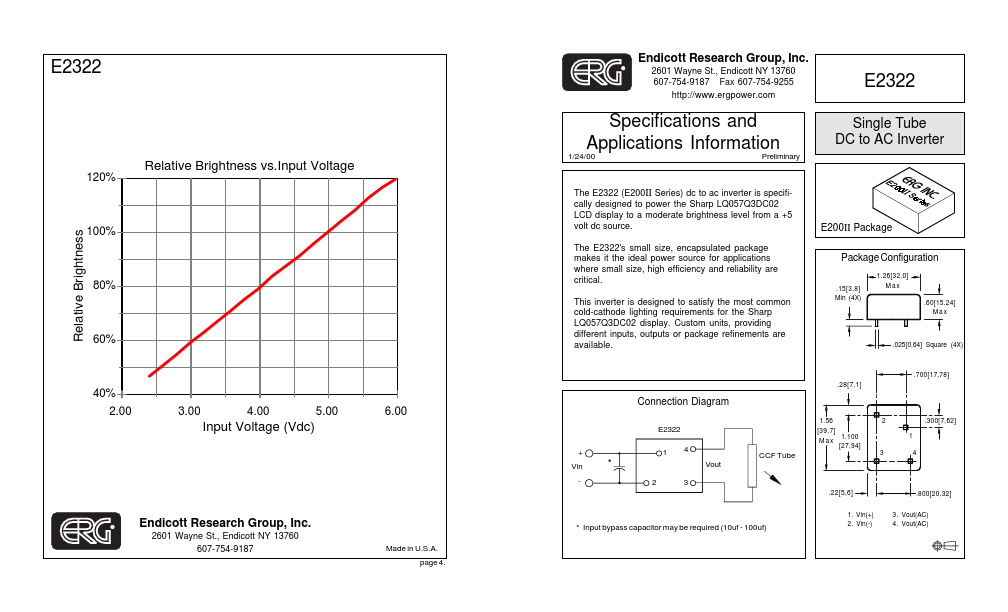

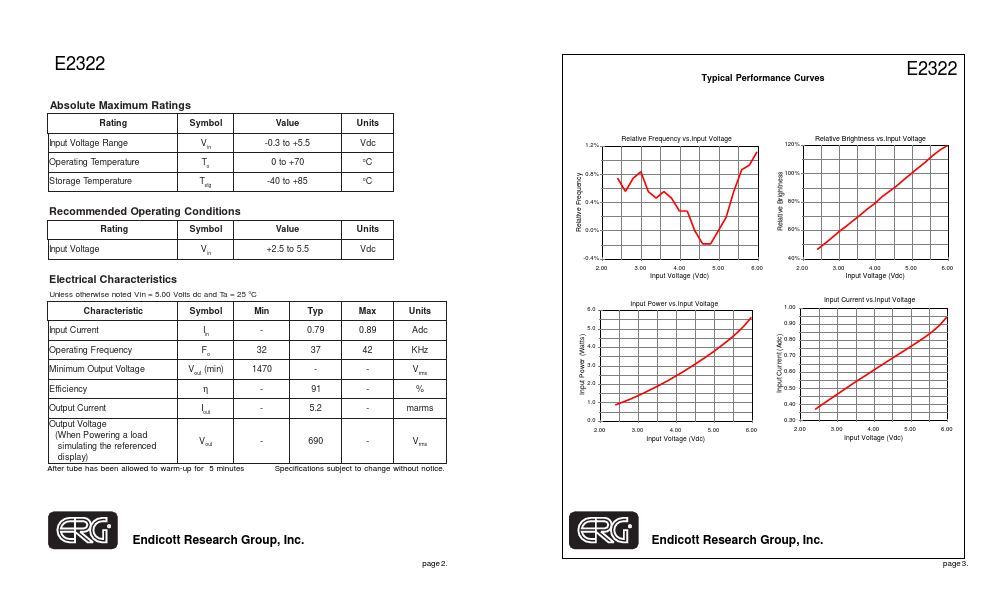

    E2322 Relative Brightness 120% Relative Brightness vs.Input Voltage 100% 80% 60% 40% 2.00 3.00 4.00 5.00 6.00 Input Voltage (Vdc) Endicott Research Group, Inc. 2601 Wayne St., Endicott NY 13760 607-754-9187 Made in U.S.A. page 4. Endicott Research Group, Inc. 2601 Wayne St., Endicott NY 13760 607-754-9187 Fax 607-754-9255 http://www.ergpower.com Specifications and Applications Information 1/24/00 Preliminary E2322 Single Tube DC to AC Inverter The E2322 (E200II Series) dc to ac inverter is specifically designed to power the Sharp LQ057Q3DC02 LCD display to a moderate brightness level from a +5 volt dc source. The E2322's small size, encapsulated package makes it the ideal power source for applications where small size, high efficiency and reliability are critical.
