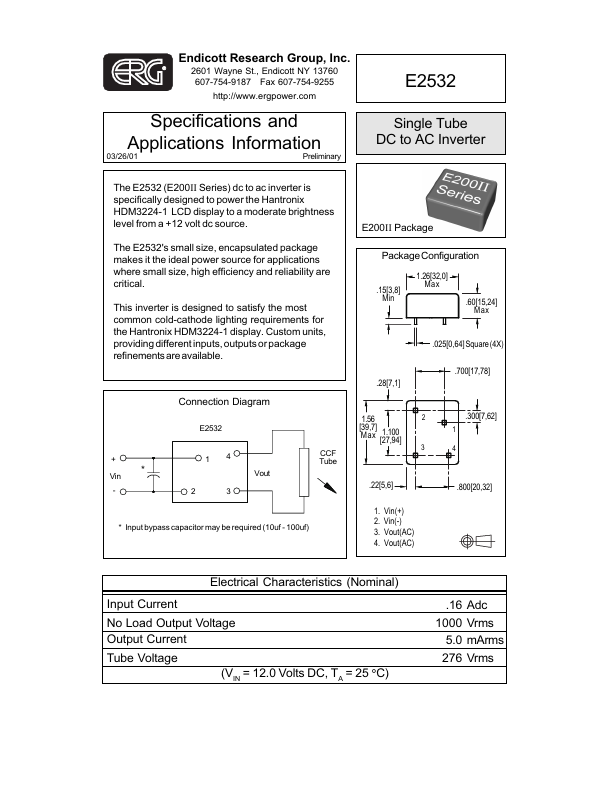

E2532
Endicott Research Group, Inc.
2601 Wayne St., Endicott NY 13760 607-754-9187 Fax 607-754-9255 http://.ergpower.
Specifications and
Applications Information
03/26/01
Preliminary
Single Tube DC to AC Inverter
The E2532 (E200II Series) dc to ac inverter is specifically designed to power the Hantronix HDM3224-1 LCD display to a moderate brightness level from a +12 volt dc source.
The E2532's small size, encapsulated package makes it the ideal power source for applications where small size, high efficiency and reliability are critical.
This inverter is designed to satisfy the most mon cold-cathode lighting requirements for the Hantronix HDM3224-1 display. Custom units, providing different inputs, outputs or package refinements are available.
+
- Vin
- Connection Diagram
14 Vout
CCF Tube
- Input bypass capacitor may be required (10uf
- 100uf)
E200II Package
Package Configuration
.15[3,8] Min
1.26[32,0] Max
.60[15,24] Max
.28[7,1]
.025[0,64] Square (4X)...
