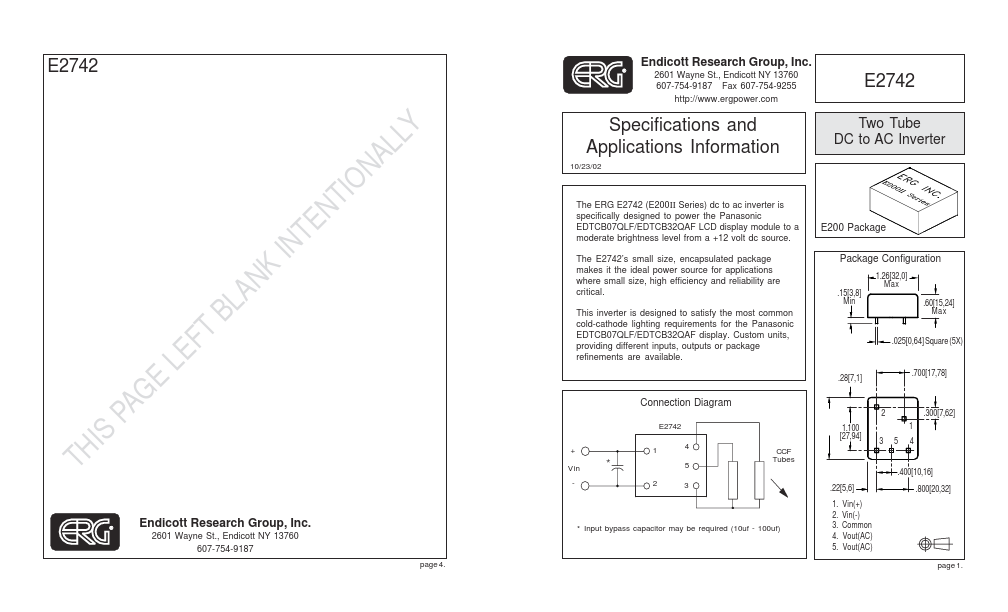

Information 10/23/02 E2742 Two Tube DC to AC Inverter The ERG E2742 (E200II Series) dc to ac inverter is specifically designed to power the Panasonic EDTCB07QLF/EDTCB32QAF LCD display module to a moderate brightness level from a +12 volt dc source. Custom units, providing different inputs, outputs or package refinements are available. + * Vin - Connection Diagram E2742 1 4 5 2 3 CCF Tubes * Input bypass capacitor may be required (10uf - 100uf) E200 Package Package Configuration .15[3,8] Min 1.26[32,0] Max .60[15,24] Max .025[0,64] Square (5X) .28[7,1] .700[17,78] 1.100 [27,94] 2 .300[7,62] 1 35 4 .22[5,6] 1. Vin(+) 2. Vin(-) 3. Common 4. Vout(AC) 5. Vout(AC) .400[10,16] .800[20,32] page 1. E2742 ABSOLUTE MAXIMUM RATINGS

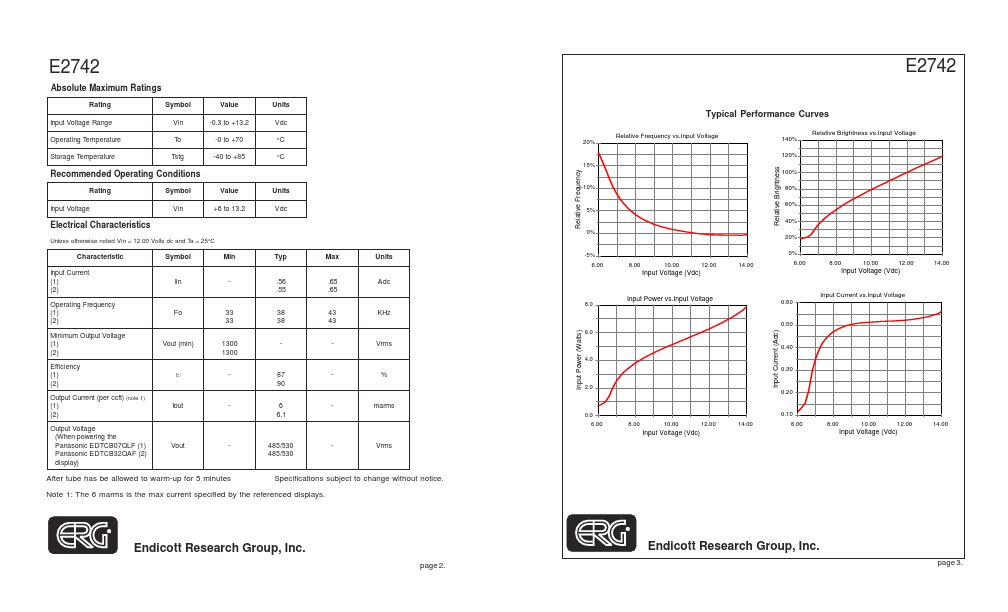

Rating Symbol Value Units Input Voltage Range Vin -0.3 to +13.2 Vdc Operating Temperature To -0 to +70 oC Storage Temperature Tstg -40 to +85 oC Recommended Operating Conditions Rating Symbol Value Units Input Voltage Vin +6 to 13.2 Vdc Electrical Character...
