L2337 - DC to AC Inverter

Description

Input Connector Output Connectors MOLEX 22-05-3041 JST SM02(8.0)B-BHS1TB 8m Package Package Configuration 1.00 [25,4] .14[3,5] Output 1 J1 Input 1 5.850 J2 [148,59] 6.12 [155,4] J2-1 J2-2 J2-3 J2-4 Vin GND Control NC J1-1 J1-4 ACout Common J3-1 J3-4 ACout Common J3 Output 1 .1

Features

  • ü Less Than 8 mm in Height ü LCD Module Specific ü Display Compatible Output Connector ü Firm Specifications ü.

📥 Download Datasheet

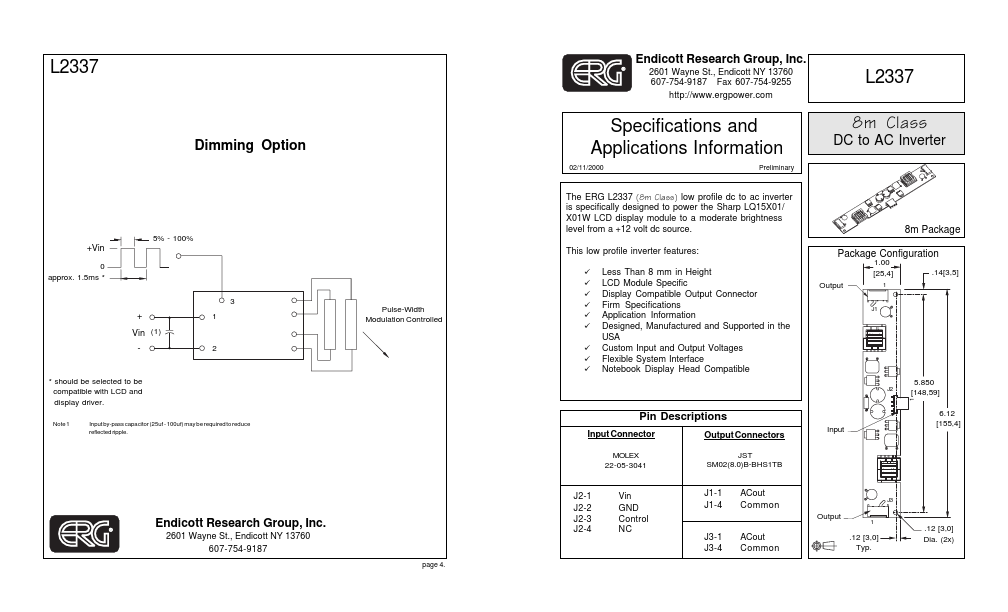

Datasheet preview – L2337

Datasheet Details

Part number L2337
Manufacturer ERG
File Size 89.98 KB
Description DC to AC Inverter
Datasheet download datasheet L2337 Datasheet

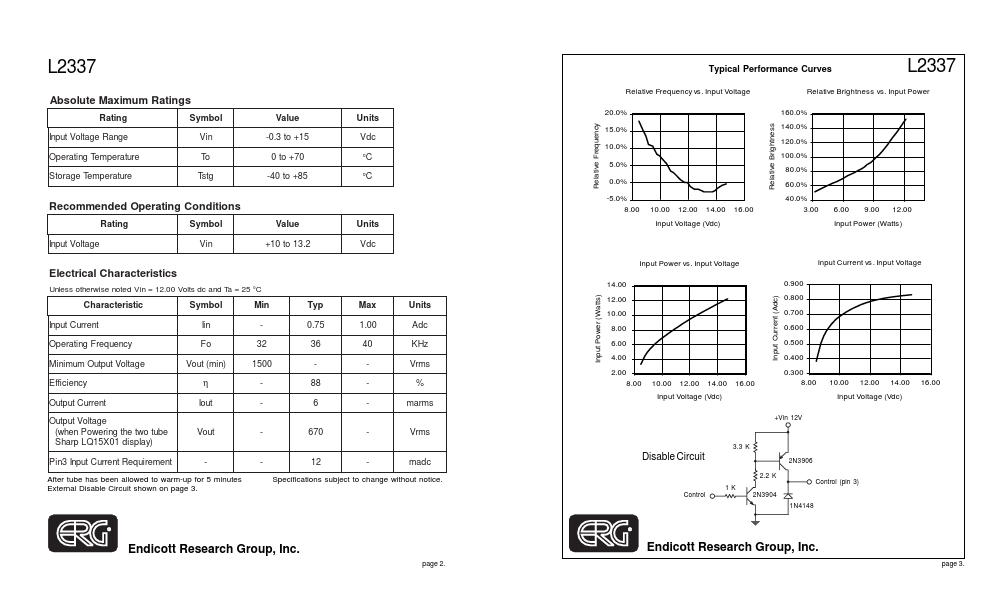

Additional preview pages of the L2337 datasheet.

📁 Similar Datasheet

  • L2330 - Coordinate Transformer (LOGIC Devices Incorporated)
  • L2310 - N-Channel 100V MOSFET (VBsemi)
  • L2320A - COLOR MONITOR SERVICE MANUAL (LG)
  • L2340 - Digital Synthesizer (LOGIC Devices Incorporated)
  • L2355 - Current Mode PWM Controller (LIZE)
  • L2358 - Current Mode PWM Controller (LIZE)
  • L2359 - Current Mode PWM Controller (LIZE)
  • L236 - Common Cathode Fast Recovery Epitaxial Diode (FRED) (IXYS Corporation)
  • L2388 - TO-46 style GaAs infrared LED (Hamamatsu Corporation)
  • L2388-01 - TO-46 style GaAs infrared LED (Hamamatsu Corporation)
Other Datasheets by ERG

    Full PDF Text Transcription

    Click to expand full text
    L2337 Dimming Option +Vin 0 approx. 1.5ms * 5% - 100% + Vin (1) - 3 1 2 * should be selected to be compatible with LCD and display driver. Note 1 Input by-pass capacitor (25uf - 100uf) may be required to reduce reflected ripple. Pulse-Width Modulation Controlled Endicott Research Group, Inc. 2601 Wayne St., Endicott NY 13760 607-754-9187 page 4. Endicott Research Group, Inc. 2601 Wayne St., Endicott NY 13760 607-754-9187 Fax 607-754-9255 http://www.ergpower.com Specifications and Applications Information 02/11/2000 Preliminary L2337 8m Class DC to AC Inverter The ERG L2337 (8m Class) low profile dc to ac inverter is specifically designed to power the Sharp LQ15X01/ X01W LCD display module to a moderate brightness level from a +12 volt dc source.
