P55W3148 - Single Tube DC to AC Inverter

Product Overview

📥 Download Datasheet

Datasheet preview – P55W3148

Datasheet Details

Part number P55W3148
Manufacturer ERG
File Size 84.93 KB
Description Single Tube DC to AC Inverter
Datasheet download datasheet P55W3148 Datasheet
Additional preview pages of the P55W3148 datasheet.

Product details

Description

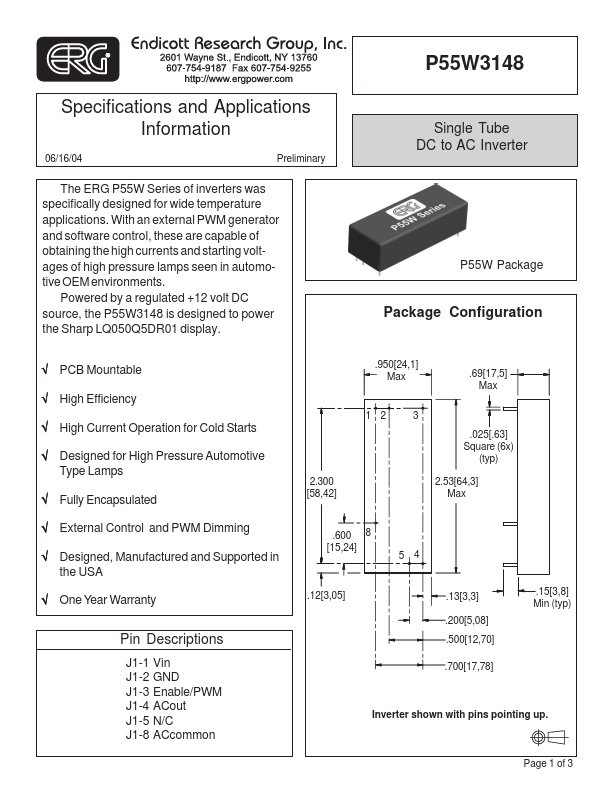

J1-1 Vin J1-2 GND J1-3 Enable/PWM J1-4 ACout J1-5 N/C J1-8 ACcommon 2.300 [58,42] .950[24,1] Max .69[17,5] Max 12 3 .025[.63] Square (6x) (typ) 2.53[64,3] Max .600 8 [15,24] 54 .12[3,05] .13[3,3] .200[5,08] .500[12,70] .700[17,78] .15[3,8] Min (typ) Inverter shown with pins pointing up.Page 1 of 3 P55W3148 Absolute Maximum Ratings (Note 1) Rating Symbol Value Units Input Voltage Range Vin -0.3 to +15 Vdc Operating Temperature (Note 2) To -30 to +85 oC Storage Temperat
