Datasheet Details
| Part number | P55W3151 |
|---|---|
| Manufacturer | ERG |
| File Size | 82.70 KB |
| Description | Single Tube DC to AC Inverter |
| Download | P55W3151 Download (PDF) |
|
|
| Part number | P55W3151 |
|---|---|
| Manufacturer | ERG |
| File Size | 82.70 KB |
| Description | Single Tube DC to AC Inverter |
| Download | P55W3151 Download (PDF) |
|
|
|

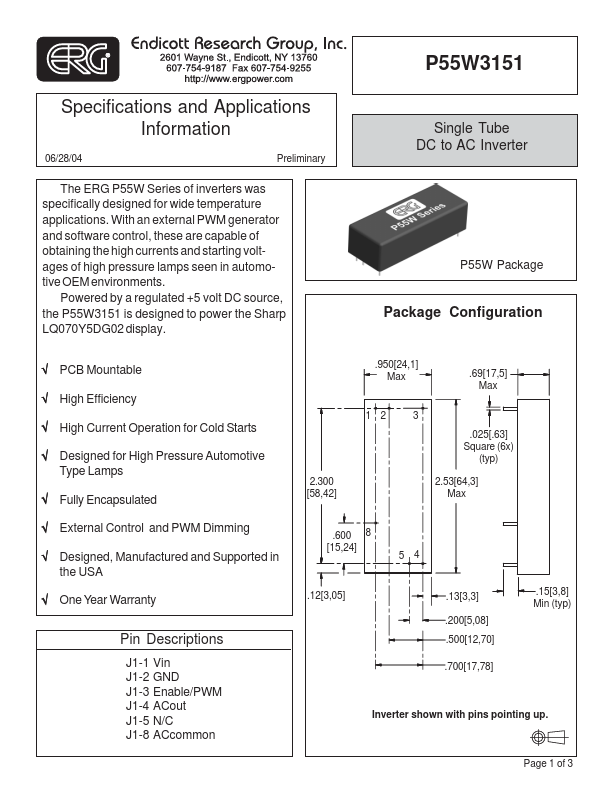

s J1-1 Vin J1-2 GND J1-3 Enable/PWM J1-4 ACout J1-5 N/C J1-8 ACcommon 2.300 [58,42] .950[24,1] Max .69[17,5] Max 12 3 .025[.63] Square (6x) (typ) 2.53[64,3] Max .600 8 [15,24] 54 .12[3,05] .13[3,3] .200[5,08] .500[12,70] .700[17,78] .15[3,8] Min (typ) Inverter shown with pins pointing up.

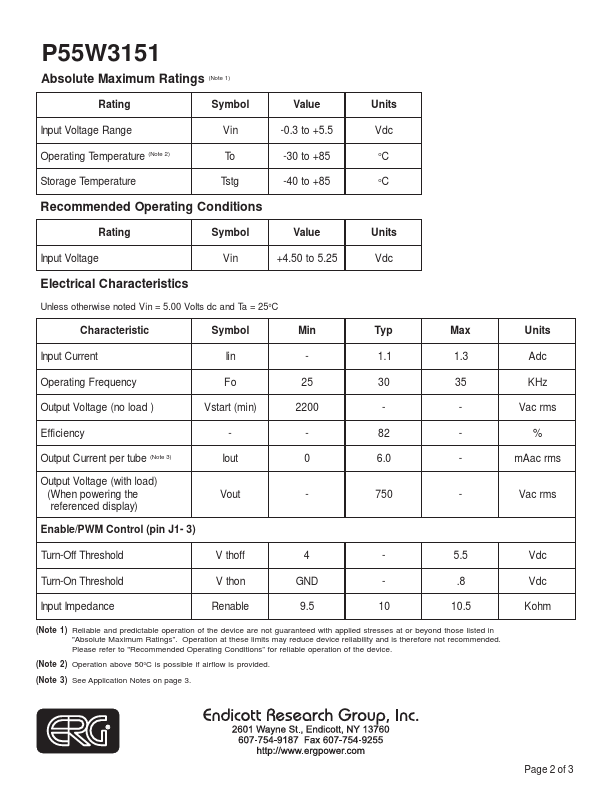

Page 1 of 3 P55W3151 Absolute Maximum Ratings (Note 1) Rating Symbol Value Units Input Voltage Range Vin -0.3 to +5.5 Vdc Operating Temperature (Note 2) To -30 to +85 oC Storage Temperature Tstg -40 to +85 oC Recommended Operating Conditions Rating Symbol Value Units Input Voltage Vin +4.50 to 5.25 Vdc Electrical Characteristics Unless otherwise noted Vin = 5.00 Volts dc and Ta = 25oC Characteristic Symbol Min Typ Max Units Input Current Iin - 1.1 1.3 Adc Operating Frequency Fo 25 30 35 KHz Output Voltage (no load ) Vstart (min) 2200 - - Vac rms Efficiency - - 82 - % Output Current per tube (Note 3) Iout 0 6.0 - mAac rms Output Voltage (with load) (When powering the Vout - 750 - Vac rms referenced display) Enable/PWM Control (pin J1- 3) Turn-Off Threshold V thoff 4 - 5.5 Vdc Turn-On Threshold V thon GND -

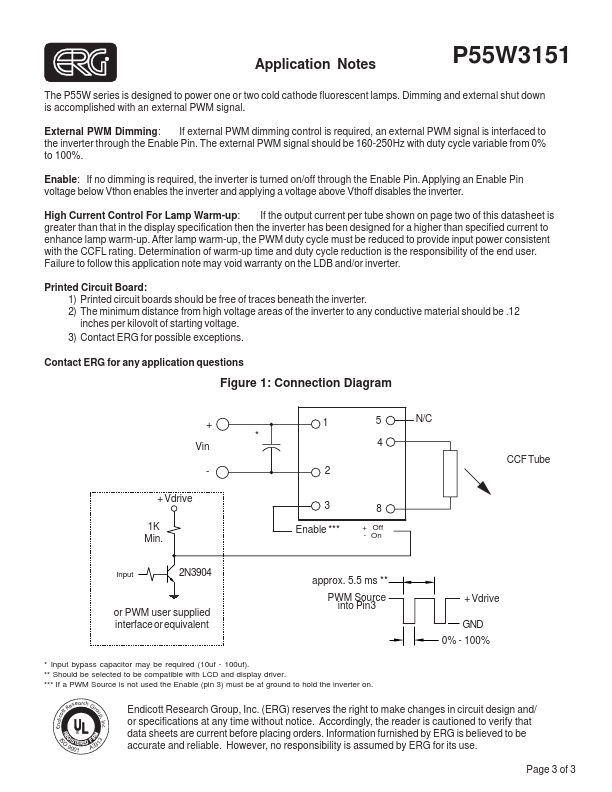

P55W3151 Specifications and Applications Information 06/28/04 Preliminary The ERG P55W Series of inverters was specifically designed for wide temperature applications.
With an external PWM generator and software control, these are capable of obtaining the high currents and starting voltages of high pressure lamps seen in automotive OEM environments.
Powered by a regulated +5 volt DC source, the P55W3151 is designed to power the Sharp LQ070Y5DG02 display.
