SBD4212F Datasheet SmartBridge

Manufacturer: ERG

SBD4212F smartbridge by ERG - Datasheet Preview

Datasheet Details

Part number	SBD4212F
Manufacturer	ERG
File Size	165.78 KB
Description	SmartBridge
Download	SBD4212F Download (PDF)

Overview

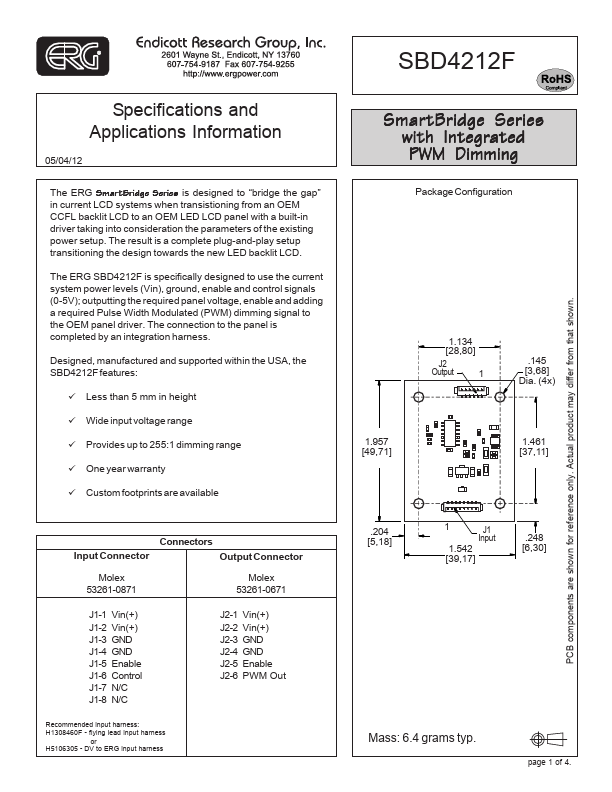

Specifications and Applications Information 05/04/12 The ERG SmartBridge Series is designed to “bridge the gap” in current LCD systems when transistioning from an OEM CCFL backlit LCD to an OEM LED LCD panel with a built-in driver taking into consideration the parameters of the existing power setup.

The result is a complete plug-and-play setup transitioning the design towards the new LED backlit LCD.

The ERG SBD4212F is specifically designed to use the current system power levels (Vin), ground, enable and control signals (0-5V); outputting the required panel voltage, enable and adding a required Pulse Width Modulated (PWM) dimming signal to the OEM panel driver.

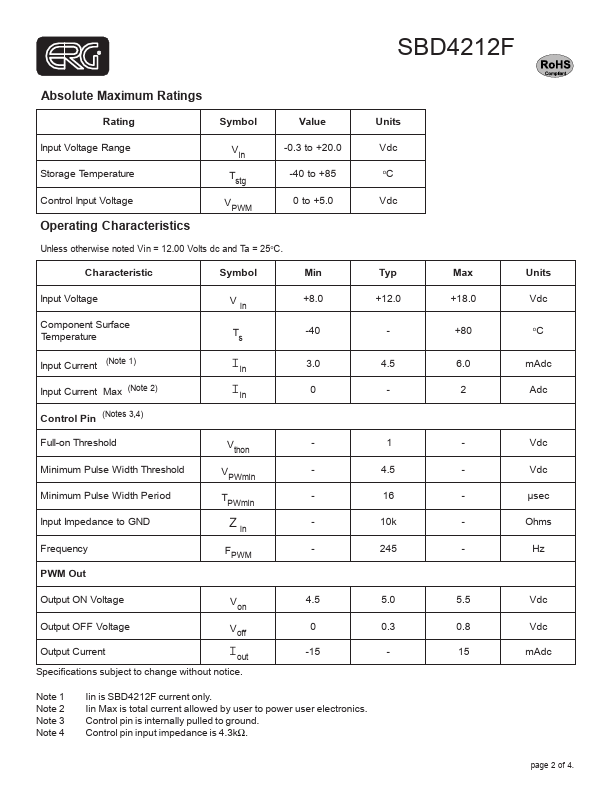

Key Features

Less than 5 mm in height.
Wide input voltage range.
Provides up to 255:1 dimming range.
One year warranty.

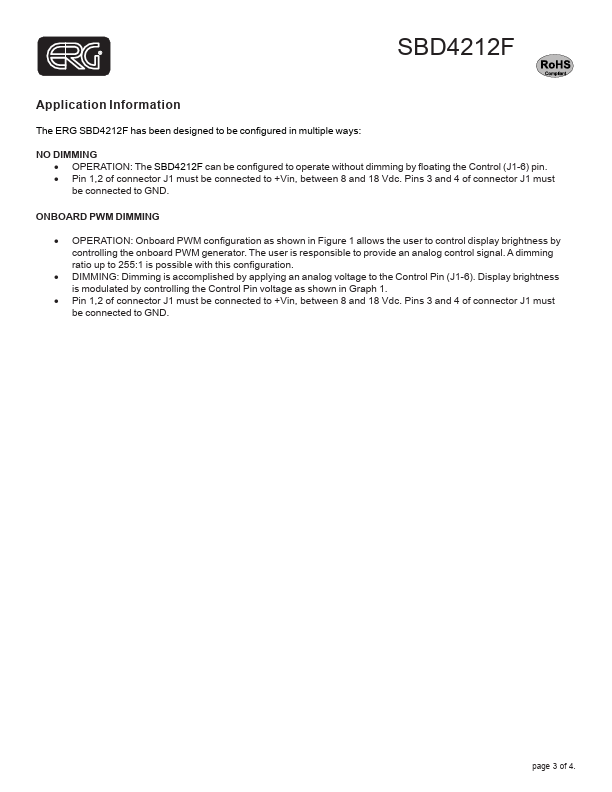

Custom footprints are available Connectors Input Connector Output Connector Molex 53261-0871 Molex 53261-0671 J1-1 Vin(+) J1-2 Vin(+) J1-3 GND J1-4 GND J1-5 Enable J1-6 Control J1-7 N/C J1-8 N/C J2-1 Vin(+) J2-2 Vin(+) J2-3 GND J2-4 GND J2-5 Enable J2-6 PWM Out Recommended input harness: H1308460F - flying lead input harness or H5106305.
