SFD2CB4006F - Smart Force LED Driver

Features

  • Constant LED current.
  • High efficiency.
  • External or Internal dimming.
  • High dimming ratio.
  • Seperate enable and dimming function.
  • Open/short circuit protection.
  • Soft start.
  • One year warranty Input Connector Molex 53261-1571 J1-1,2,3 J1-4,5,6 J1-7,8,9 J1-10,11,12 J1-13 J1-14 J1-15 Vin(+) Vin(+) GND GND Enable PWM Control Connectors Output Connectors.
  • Molex 53261-0871 J3-1 Cathode 1 J3-2 Anode 1 J3-3 Cathode 2 J3-4 Ano.

📥 Download Datasheet

Datasheet preview – SFD2CB4006F

Datasheet Details

Part number SFD2CB4006F
Manufacturer ERG
File Size 167.69 KB
Description Smart Force LED Driver
Datasheet download datasheet SFD2CB4006F Datasheet

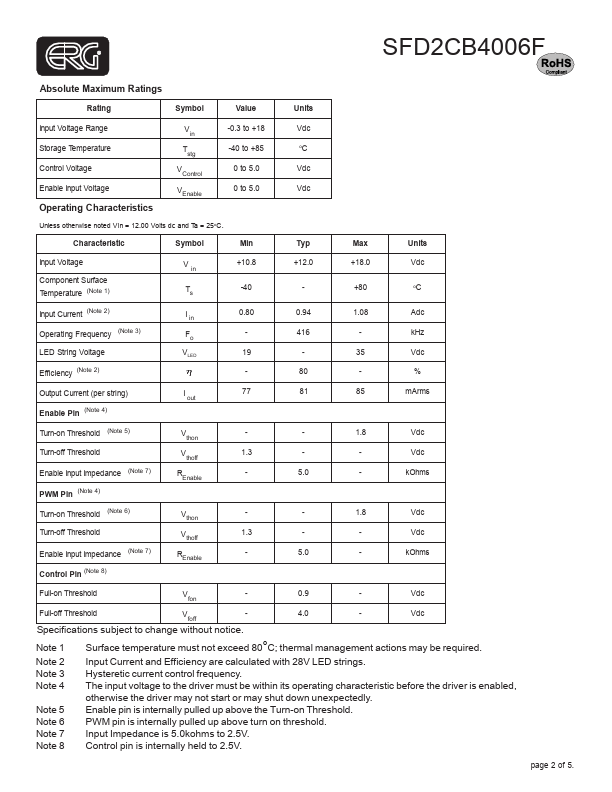

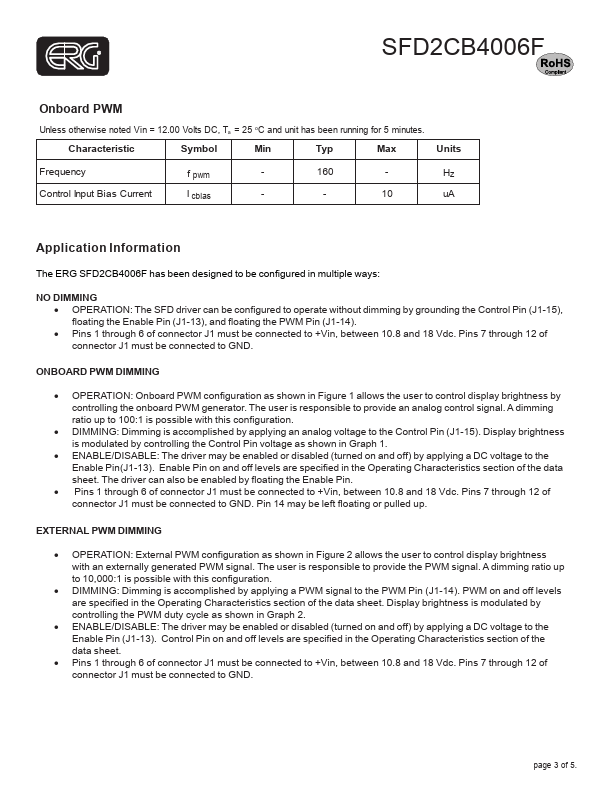

Additional preview pages of the SFD2CB4006F datasheet.

📁 Similar Datasheet

  • SFD2003T - 30A 20V N-CHANNEL MOSFET (HiSemicon)
  • SFD2006T - 60A 20V N-CHANNEL MOSFET (HiSemicon)
  • SFD2008T - 80A 20V N-CHANNEL MOSFET (HiSemicon)
  • SFD25 - Frequency Doubler (Tyco Electronics)
  • SFD25C - Frequency Doubler (Tyco Electronics)
  • SFD25E - Frequency Doubler (Tyco Electronics)
  • SFD25H - Frequency Doubler (MA-COM)
  • SFD25N06BT - Silicon N-Channel MOSFET (WINSEMI)
  • SFD26 - Frequency Doubler (Tyco Electronics)
  • SFD2N60 - N-Channel MOSFET (SemiWell Semiconductor)
Other Datasheets by ERG

Full PDF Text Transcription

Click to expand full text

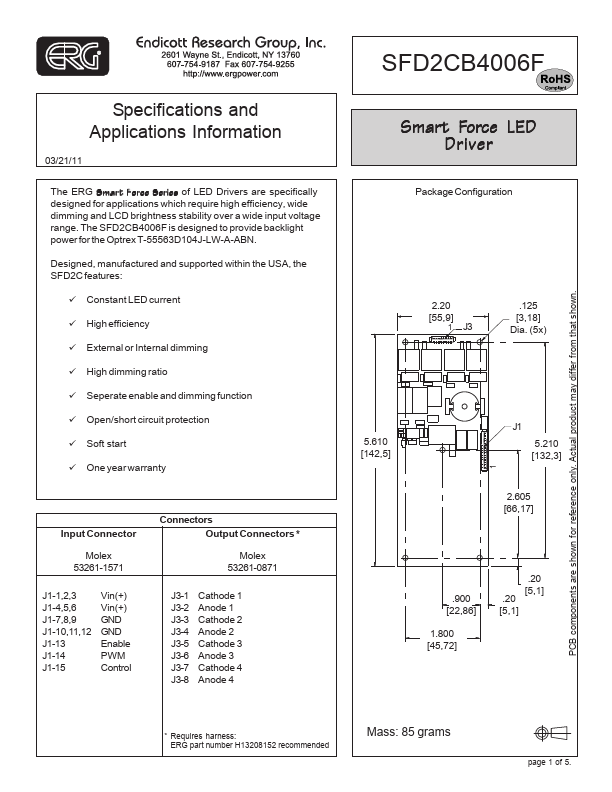

1 PCB components are shown for reference only. Actual product may differ from that shown. Specifications and Applications Information 03/21/11 The ERG Smart Force Series of LED Drivers are specifically designed for applications which require high efficiency, wide dimming and LCD brightness stability over a wide input voltage range. The SFD2CB4006F is designed to provide backlight power for the Optrex T-55563D104J-LW-A-ABN.
