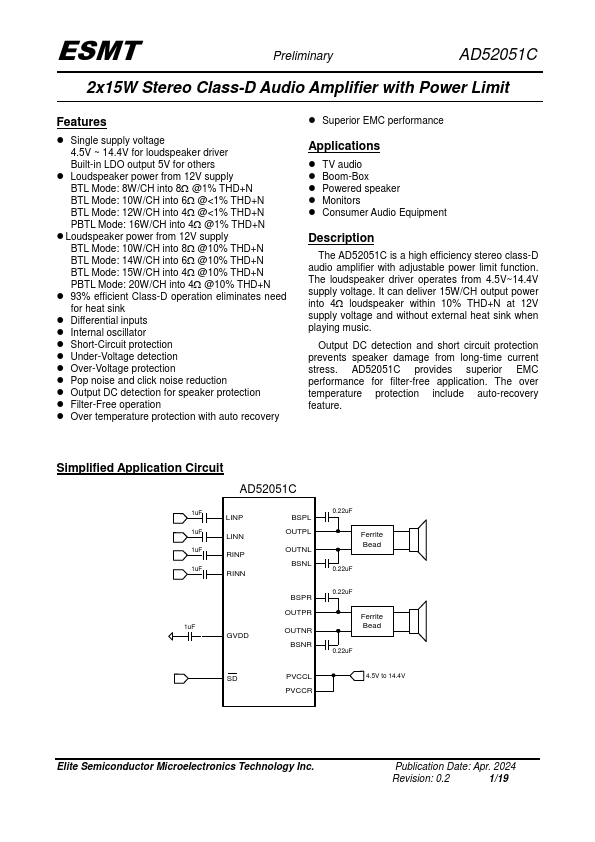

ESMT AD52051C
Stereo Class-D Audio Amplifier with Power Limit
| Part No. | AD52051C |
|---|---|
| Datasheet | AD52051C Download |
| Manufacturer |  ESMT |
| Description | Stereo Class-D Audio Amplifier with Power Limit |
| Buy | Stock & Price |
FEATURES
● Single supply voltage 4.5V ~ 14.4V for loudspeaker driver Built-in LDO output 5V for others● Loudspeaker power from 12V supply BTL Mode: 8W/CH into 8 @1% THD+N BTL Mode: 10W/CH into 6 @<1% THD+N BTL Mode: 12W/CH into 4 @<1% THD+N PBTL Mode: 16W/CH into 4 @1% THD+N
● Loudspeaker power from 12V supply BTL Mode: 10W/CH into 8 @10% THD+N BTL Mode: 14W/CH into 6 @10% THD+N BTL Mode: 15W/CH into 4 @10% THD+N PBTL Mode: 20W/CH into 4 @10% THD+N
● 93% efficient Class-D operation eliminates need for heat sink
● Differential inputs
● Internal oscillator
● Short-Circuit protection
● Under-Voltage detection
● Over-Voltage protection
● Pop noise and click noise reduction
● Output DC detection for speaker protection
● Filter-Free operation
● Over temperature protection with auto recovery
● Superior EMC performance
APPLICATIONS
● TV audio● Boom-Box
● Powered speaker
● Monitors
● Consumer Audio Equipment
DESCRIPTION
The AD52051C is a high efficiency stereo class-D audio amplifier with adjustable power limit function.
