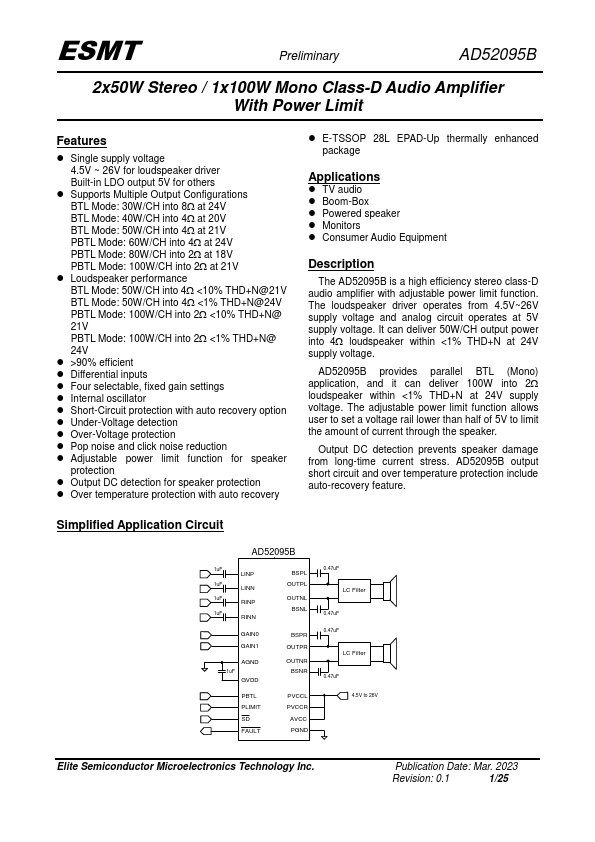

AD52095B Datasheet | Elite Semiconductor Microelectronics Technology

Features - Single supply voltage 4.5V ~ 26V for loudspeaker driver Built-in LDO output 5V for others - Supports Multiple Output Configurations BTL Mode: 30W/CH into 8at 24V BTL Mode: 40W/CH into 4at 20V BTL Mode: 50W/CH into 4at 21V PBTL Mode: 60W/CH into 4at 24V PBTL Mode: 80W/CH into 2at 18V PBTL Mode: 100W/CH into 2at 21V - Loudspeaker performance BTL Mode: 50W/CH into 4 <10% THD+N@21V BTL Mode: 50W/CH into 4 <1% THD+N@24V PBTL Mode: 100W/CH into 2 <10% THD+N@ 21V PBTL Mode: 100W/CH into 2 <1% THD+N@ 24V - >90% efficient - Differential inputs - Four selectable, fixed gain settings - Internal oscillator - Short-Circuit protection with auto recovery option - Under-Voltage detection - Over-Voltage protection - Pop noise and click noise reduction - Adjustable power limit function for speaker protection - Output DC detection for speaker protection - Over temperature protection with auto recovery - E-TSSOP 28L EPAD-Up thermally enhanced package Applications - TV audio -...
