AD62557 - USB Audio Controller

General Description

AD62557 is a highly integrated USB single chip for Stereo/Mono speaker.

Key Features

  • z Compliant with USB Specification v1.1, and USB 2.0 full speed z Compliant with USB 3.0 super speed operation z Embedded stereo ADC with Microphone Boost z Embedded Power-On-Reset circuit z Embedded high efficiency, high performance Class-D stereo amplifier z Support I2S input (master and slave mode) and I2S output interface (master mode) z Support sampling frequency 44.1/48KHz for playback and recording z Pin to set recording source from internal ADC or external ADC z Pin to set speaker mode o.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AD62550 Class-D Audio Power Amplifier Elite Semiconductor
AD62552A High Integrated USB Audio Controller Elite Semiconductor
AD62555 Class-D Audio Power Amplifier Elite Semiconductor
AD62556 USB Audio Controller Elite Semiconductor
AD625 Programmable Gain Instrumentation Amplifier Analog Devices

Other Datasheets by ESMT (Elite Semiconductor Microelectronics Technology)

Part Number Description
AD62550A Class-D Audio Power Amplifier
AD62551A USB controller
AD62553 USB Audio Controller & Line-in Interface
AD6255A Class-D Audio Power Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

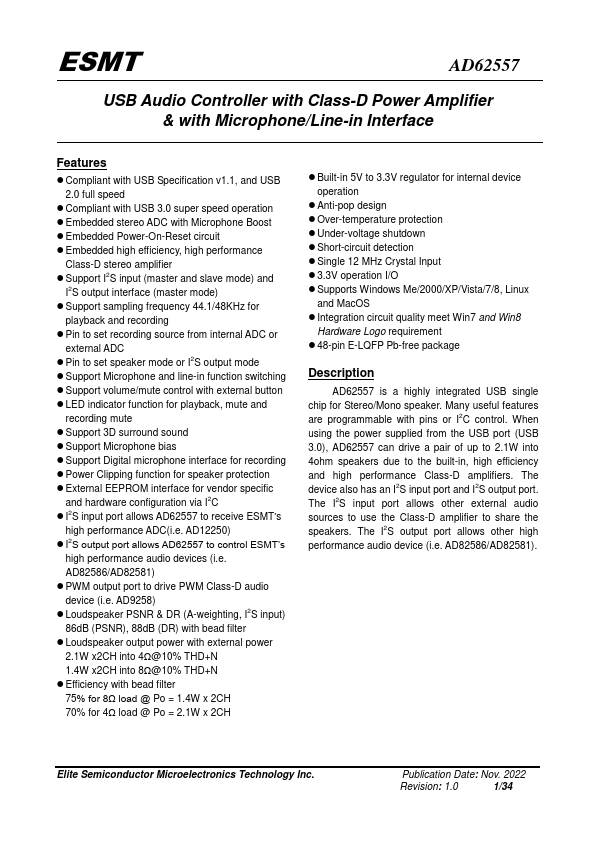

ESMT AD62557 USB Audio Controller with Class-D Power Amplifier & with Microphone/Line-in Interface Features z Compliant with USB Specification v1.1, and USB 2.0 full speed z Compliant with USB 3.0 super speed operation z Embedded stereo ADC with Microphone Boost z Embedded Power-On-Reset circuit z Embedded high efficiency, high performance Class-D stereo amplifier z Support I2S input (master and slave mode) and I2S output interface (master mode) z Support sampling frequency 44.
