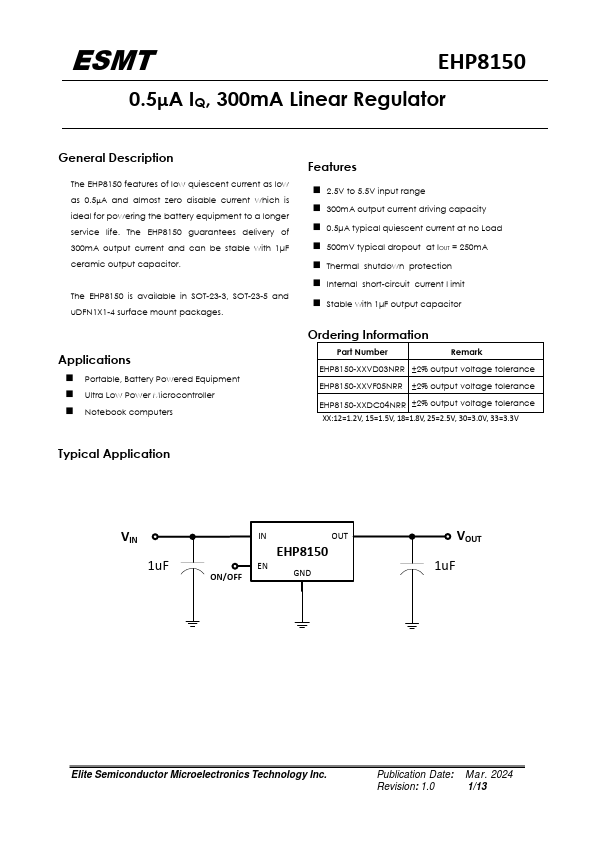

EHP8150
Description
The EHP8150 features of low quiescent current as low as 0.5μA and almost zero disable current which is ideal for powering the battery equipment to a longer service life. The EHP8150 guarantees delivery of 300m A output current and can be stable with 1μF ceramic output capacitor.
The EHP8150 is available in SOT-23-3, SOT-23-5 and u DFN1X1-4 surface mount packages.
Applications
Portable, Battery Powered Equipment Ultra Low Power Microcontroller Notebook puters
Features
2.5V to 5.5V input range 300m A output current driving capacity 0.5μA typical quiescent current at no Load 500m V typical dropout at IOUT = 250m A Thermal shutdown protection Internal short-circuit current l imit Stable with 1μF output capacitor

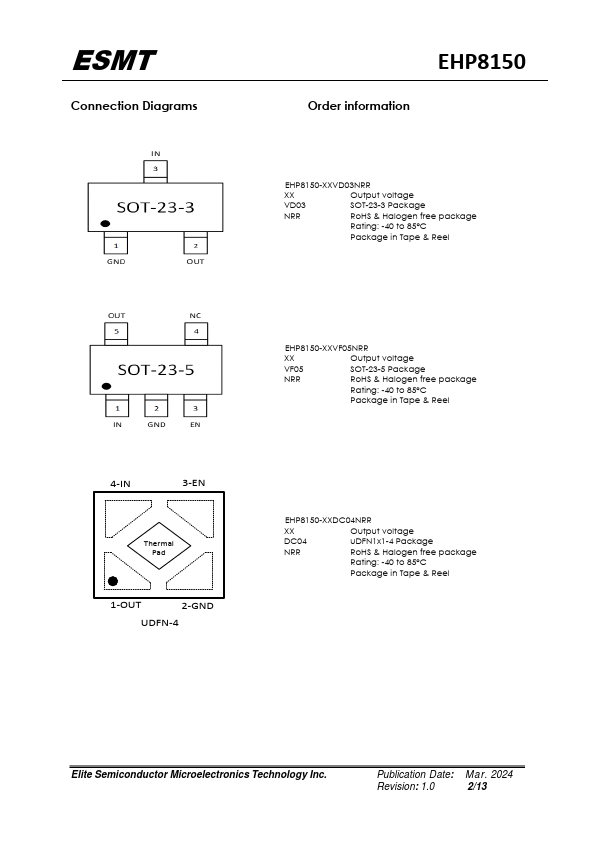

Ordering Information
Part Number
Remark
EHP8150-XXVD03NRR ±2% output voltage tolerance
EHP8150-XXVF05NRR ±2% output voltage tolerance
EHP8150-XXDC04NRR ±2% output voltage tolerance XX:12=1.2V, 15=1.5V, 18=1.8V, 25=2.5V, 30=3.0V, 33=3.3V
Typical...
