EMC5042 - Standalone Linear Li-Ion Charger

General Description

The EMC5042 is a complete linear charger for two-cell lithium-ion batteries.

With small TDFN-10 package and few external components, EMC5042 is well suited for portable applications.

No external sense resistor and blocking diode are required.

Key Features

  • 13.5V maximum rating voltage for AC adapter, and it provides the charge current up to 1.2A. Other features include batte.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EMC5040 Standalone Linear Li-Ion Charger Elite Semiconductor
EMC5046 Standalone Linear Li-Ion Charger Elite Semiconductor
EMC5060 Single-cell Li-Ion Charger IC Elite Semiconductor
EMC5754 Standalone Linear Li-Ion Battery Charger EMP
EMC5755 Standalone 1.2A Linear Li-Ion Battery Charger Elite Semiconductor

Other Datasheets by ESMT (Elite Semiconductor Microelectronics Technology)

Part Number Description
EMC5045 Standalone Linear Li-Ion Charger
EMC5050 1.5A Li-ion/Li Polymer Battery Charger
EMC5051 2A Li-ion/Li Polymer Battery Charger
EMC5090 2.5A Synchronous Buck Li-ion Battery Charger

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

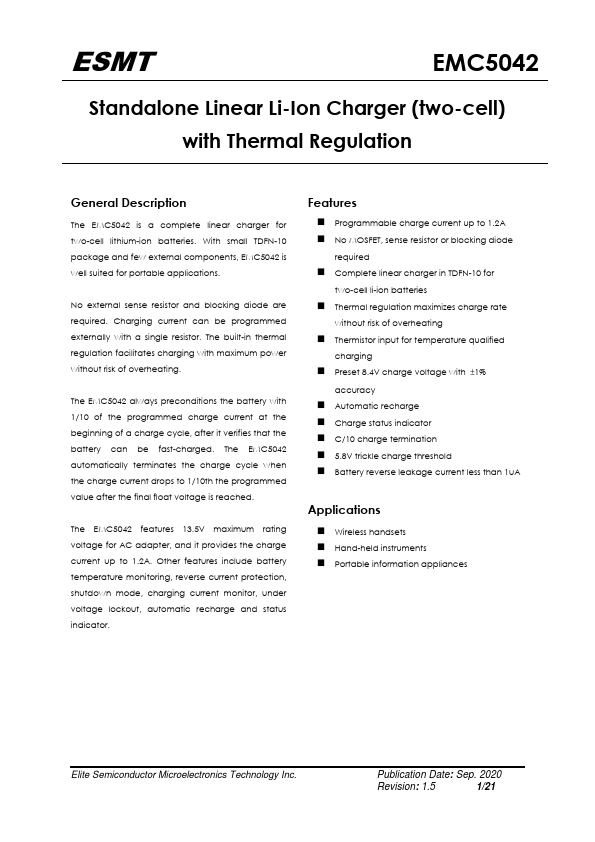

ESMT/EMP EMC5042 Standalone Linear Li-Ion Charger (two-cell) with Thermal Regulation General Description The EMC5042 is a complete linear charger for two-cell lithium-ion batteries. With small TDFN-10 package and few external components, EMC5042 is well suited for portable applications. No external sense resistor and blocking diode are required. Charging current can be programmed externally with a single resistor. The built-in thermal regulation facilitates charging with maximum power without risk of overheating. The EMC5042 always preconditions the battery with 1/10 of the programmed charge current at the beginning of a charge cycle, after it verifies that the battery can be fast-charged.
