EMD2A456

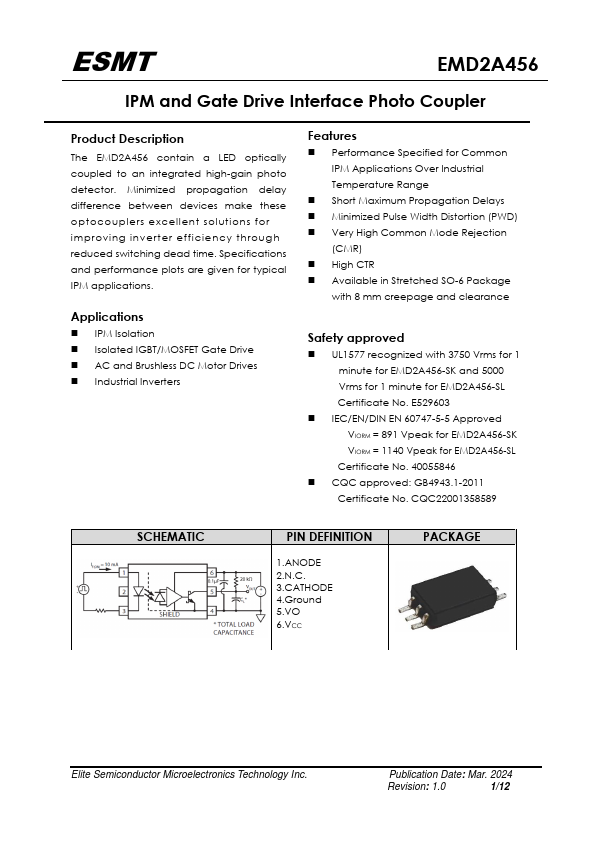

Description
The EMD2A456 contain a LED optically coupled to an integrated high-gain photo detector. Minimized propagation delay difference between devices make these optocouplers excellent solutions for improving inverter efficiency through reduced switching dead time. Specifications and performance plots are given for typical IPM applications.
Applications
- IPM Isolation
- Isolated IGBT/MOSFET Gate Drive
- AC and Brushless DC Motor Drives
- Industrial Inverters
Features
- Performance Specified for mon IPM Applications Over Industrial Temperature Range
- Short Maximum Propagation Delays
- Minimized Pulse Width Distortion (PWD)
- Very High mon Mode Rejection
(CMR)
- High CTR
- Available in Stretched SO-6 Package with 8 mm creepage and clearance
Safety approved
- UL1577 recognized with 3750 Vrms for 1 minute for EMD2A456-SK and 5000 Vrms for 1 minute for EMD2A456-SL Certificate No. E529603
- IEC/EN/DIN EN 60747-5-5 Approved VIORM = 891 Vpeak for EMD2A456-SK VIORM = 1140 Vpeak for...
