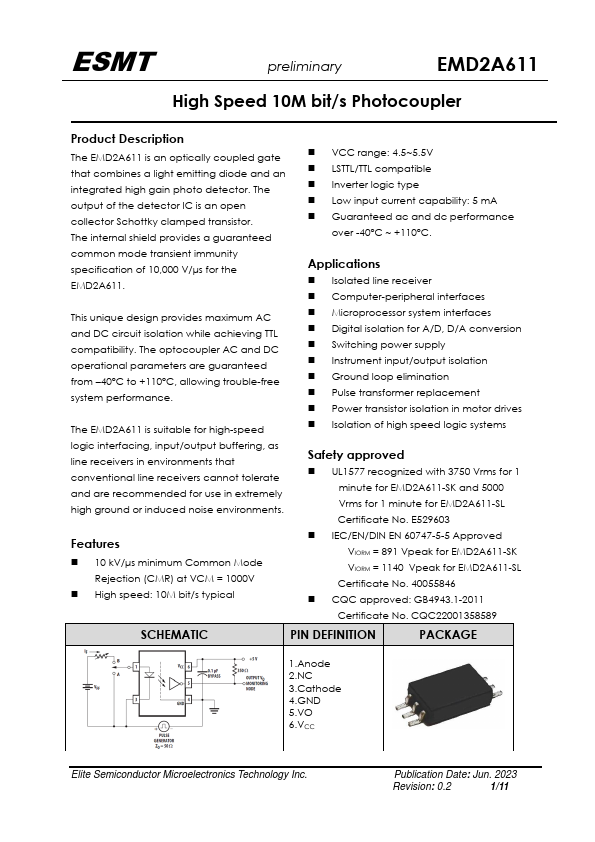

EMD2A611
Description
The EMD2A611 is an optically coupled gate that bines a light emitting diode and an integrated high gain photo detector. The output of the detector IC is an open collector Schottky clamped transistor. The internal shield provides a guaranteed mon mode transient immunity specification of 10,000 V/μs for the EMD2A611.
This unique design provides maximum AC and DC circuit isolation while achieving TTL patibility. The optocoupler AC and DC operational parameters are guaranteed from
- 40°C to +110°C, allowing trouble-free system performance.
The EMD2A611 is suitable for high-speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and are remended for use in extremely high ground or induced noise environments.
Features
- 10 k V/μs minimum mon Mode Rejection (CMR) at VCM = 1000V
- High speed: 10M bit/s typical
- VCC range: 4.5~5.5V
- LSTTL/TTL patible
- Inverter logic type
- Low input current capability: 5...
