EMD2A688
Description
The EMD2A688 is a synchronous rectifier controller IC which bines an Al Ga In P Red emitting diode and smart logic system for controlling secondary side rectifying power MOSFET. The control system can improve efficiency on switching power supply system. The most mon application is on fast-charging system.
Applications
- Switching Power Supply Unit
Features
- High isolation 5000V RMS
- Synchronous control on switching power supply system

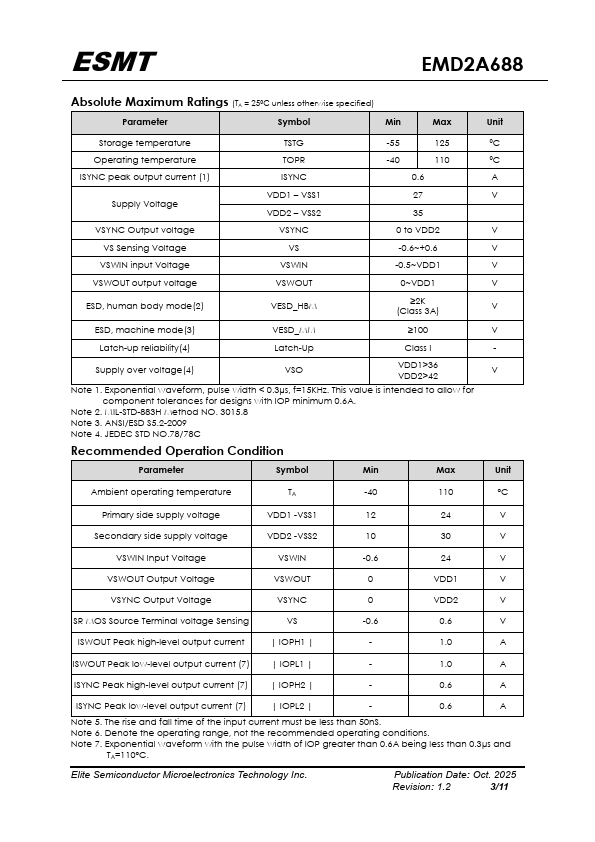

- Operating temperature range -40°C
~110°C
- REACH & Ro HS pliance
- MSL Class 1
Safety approved
- Regulatory Approvals
- UL
- UL1577 Certificate No. E529603
- VDE
- EN60747-5-5(VDE0884-5)
- CQC
- GB4943.1, 2022 Certificate No. CQC24001437590

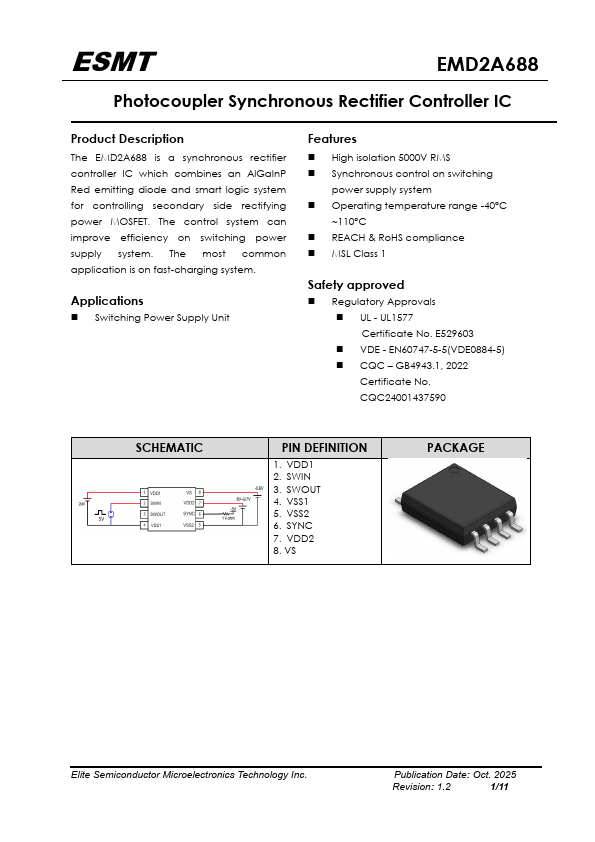

SCHEMATIC
PIN DEFINITION
1. VDD1 2. SWIN 3. SWOUT 4. VSS1 5. VSS2 6. SYNC 7. VDD2 8. VS
PACKAGE
Elite Semiconductor Microelectronics Technology Inc.
Publication Date: Oct. 2025
Revision: 1.2
1/11
ESMT

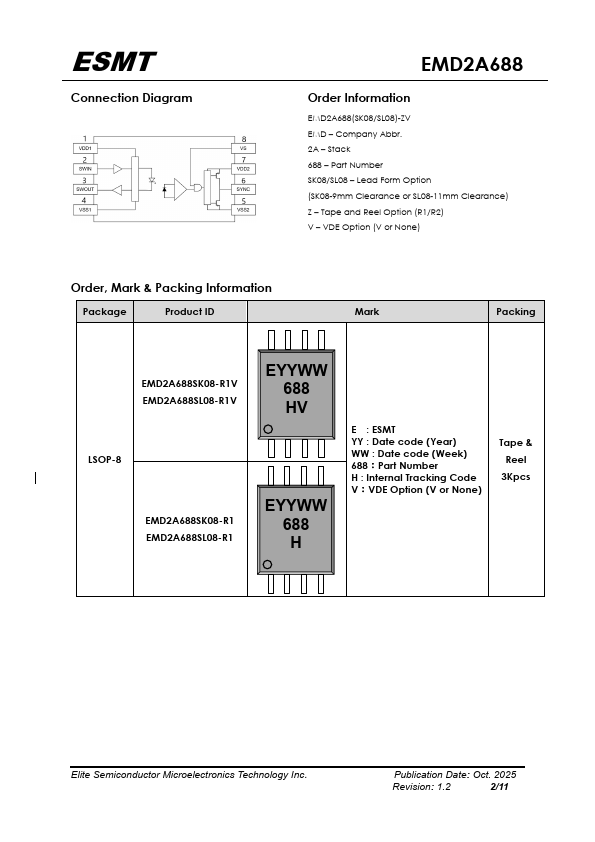

Connection Diagram
Order Information
EMD2A688(SK08/SL08)-ZV EMD
- pany Abbr. 2A
- Stack...
