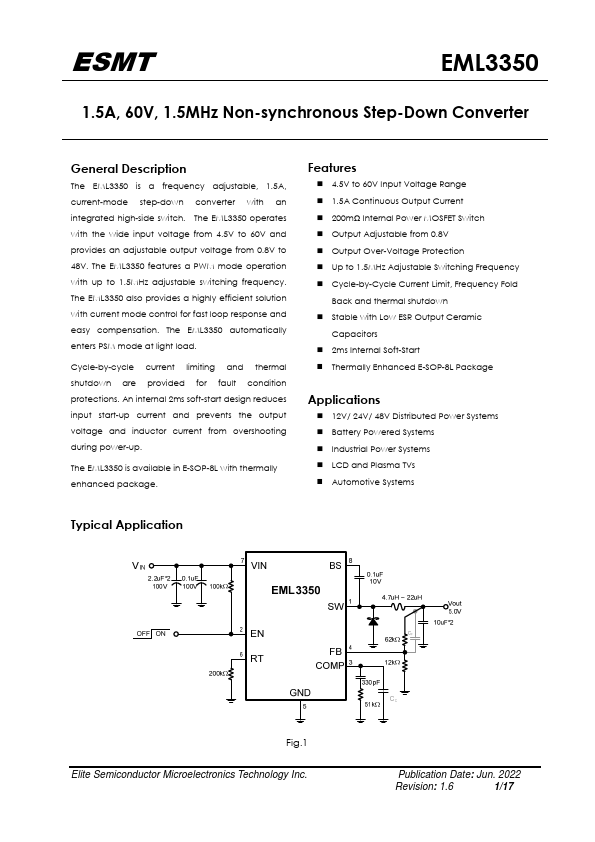

EML3350
Description
The EML3350 is a frequency adjustable, 1.5A, current-mode step-down converter with an integrated high-side switch. The EML3350 operates with the wide input voltage from 4.5V to 60V and provides an adjustable output voltage from 0.8V to 48V. The EML3350 features a PWM mode operation with up to 1.5MHz adjustable switching frequency. The EML3350 also provides a highly efficient solution with current mode control for fast loop response and easy pensation. The EML3350 automatically enters PSM mode at light load.
Cycle-by-cycle current limiting and thermal shutdown are provided for fault condition protections. An internal 2ms soft-start design reduces input start-up current and prevents the output voltage and inductor current from overshooting during power-up.

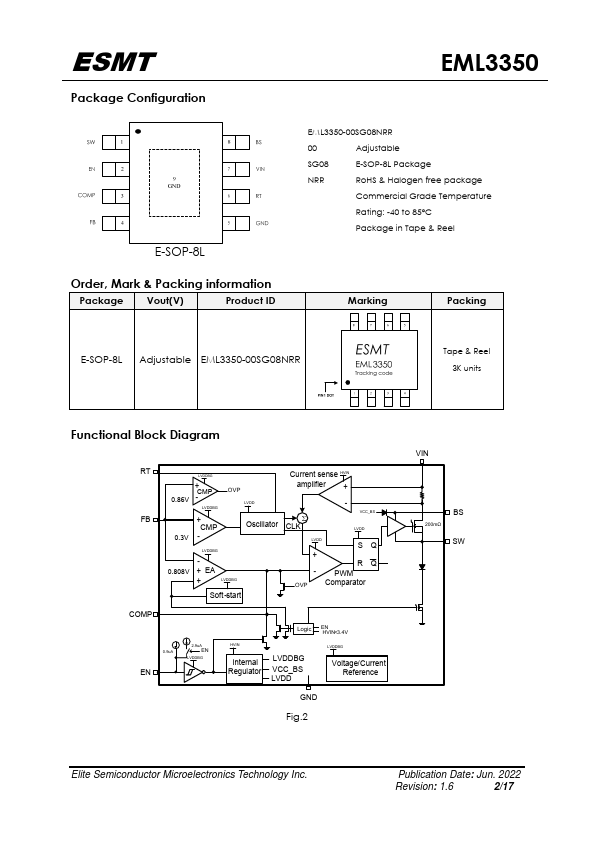

The EML3350 is available in E-SOP-8L with thermally enhanced package.
Features
- 4.5V to 60V Input Voltage Range
- 1.5A Continuous Output Current
- 200mΩ Internal Power MOSFET Switch
- Output Adjustable from 0.8V
- Output...
