EMP8150

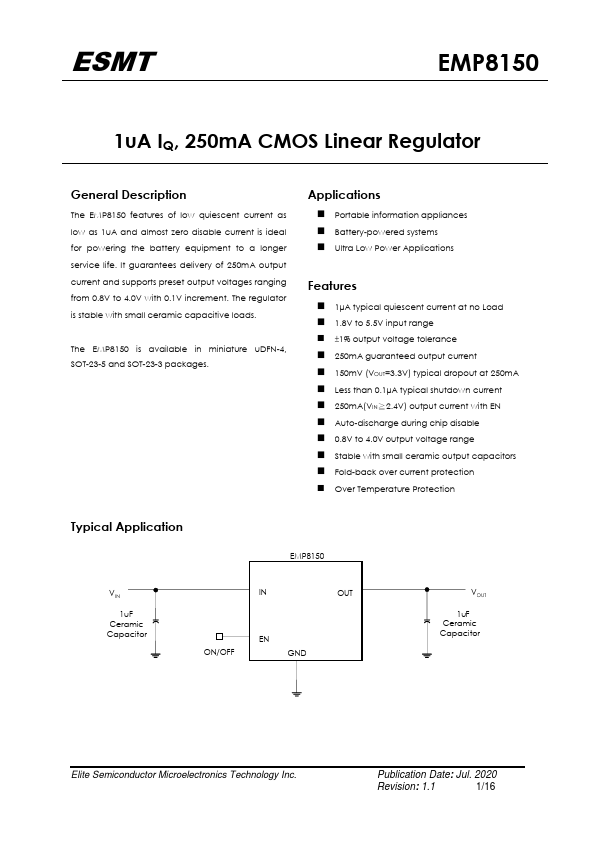

Description
The EMP8150 features of low quiescent current as low as 1u A and almost zero disable current is ideal for powering the battery equipment to a longer service life. It guarantees delivery of 250m A output current and supports preset output voltages ranging from 0.8V to 4.0V with 0.1V increment. The regulator is stable with small ceramic capacitive loads.

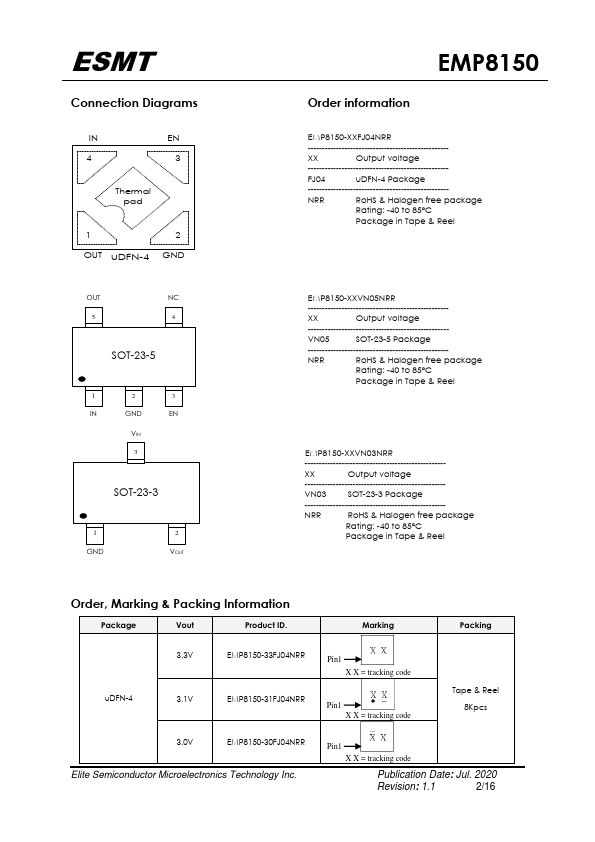

The EMP8150 is available in miniature u DFN-4, SOT-23-5 and SOT-23-3 packages.
Applications
Portable information appliances Battery-powered systems Ultra Low Power Applications
Features
1µA typical quiescent current at no Load 1.8V to 5.5V input range ±1% output voltage tolerance 250m A guaranteed output current 150m V (VOUT=3.3V) typical dropout at 250m A Less than 0.1µA typical shutdown current 250m A(VIN≧2.4V) output current with EN Auto-discharge during chip disable 0.8V to 4.0V output voltage range Stable with small ceramic output capacitors Fold-back over current protection Over Temperature...
