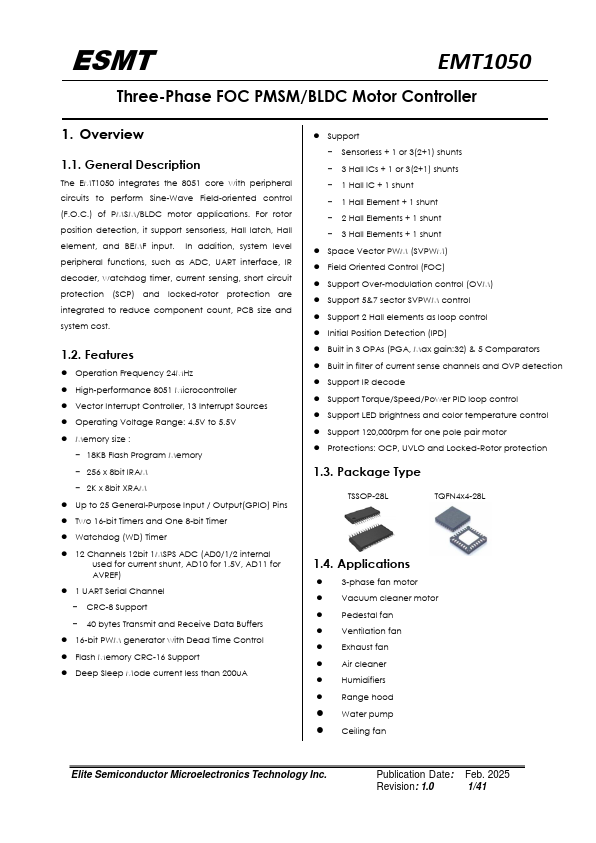

EMT1050
Overview
1.1. General Description
The EMT1050 integrates the 8051 core with peripheral circuits to perform Sine-Wave Field-oriented control (F.O.C.) of PMSM/BLDC motor applications. For rotor position detection, it support sensorless, Hall latch, Hall element, and BEMF input. In addition, system level peripheral functions, such as ADC, UART interface, IR decoder, watchdog timer, current sensing, short circuit protection (SCP) and locked-rotor protection are integrated to reduce ponent count, PCB size and system cost.
1.2. Features
- Operation Frequency 24MHz
- High-performance 8051 Microcontroller
- Vector Interrupt Controller, 13 Interrupt Sources
- Operating Voltage Range: 4.5V to 5.5V
- Memory size :
- 18KB Flash Program Memory
- 256 x 8bit IRAM
- 2K x 8bit XRAM
- Up to 25 General-Purpose Input / Output(GPIO) Pins
- Two 16-bit Timers and One 8-bit Timer
- Watchdog (WD) Timer
- 12 Channels 12bit 1MSPS ADC (AD0/1/2 internal used for current shunt, AD10 for 1.5V, AD11 for AVREF)
- 1...
