Datasheet Details
| Part number | EN29LV160D |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 0.99 MB |
| Description | 16 Megabit Flash Memory Boot Sector Flash Memory |
| Datasheet |

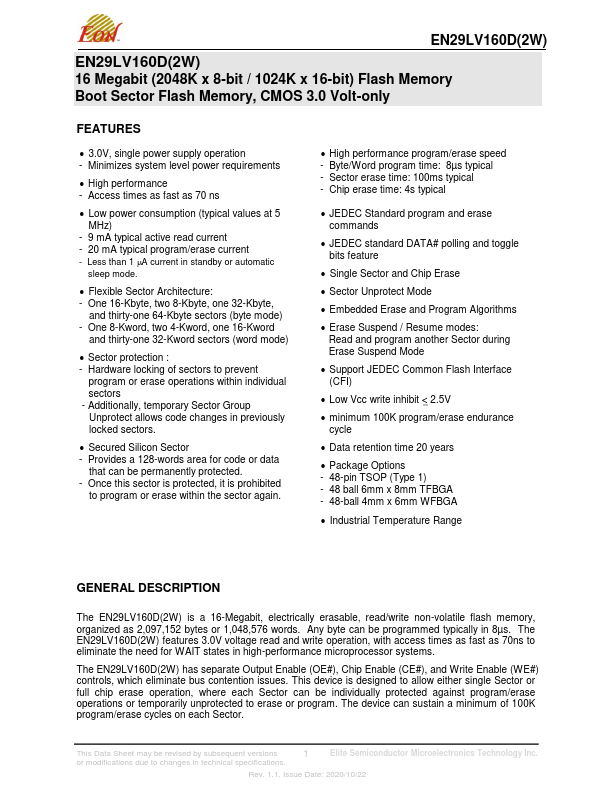

 EN29LV160D Datasheet
|
|
|
General Description
The EN29LV160D(2W) is a 16-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 2,097,152 bytes or 1,048,576 words.
Any byte can be programmed typically in 8µs.
Key Features
- 3.0V, single power supply operation - Minimizes system level power requirements.
- High performance - Access times as fast as 70 ns.
- Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 A current in standby or automatic sleep mode.
- Flexible Sector Architecture: - One 16-Kbyte, two 8-Kbyte, one 32-Kbyte, and thirty-one 64-Kbyte sectors (byte mode) - One 8-Kword, two 4-Kword, one 16-Kword and thi.
