ET1511B - Infrared Filter Switch Driver

This page provides the datasheet information for the ET1511B, a member of the ET1511A Infrared Filter Switch Driver family.

Description

ET1511A/B is an infrared filter switch driver IC which designed for filter control driving in IR cut module in camera.

ET1511A/B could function as a one-channel, low output headroom voltage, bi-directional H-bridge driver by appropriate input controls.

Features

  • 1.75V to 5.5V operation voltage range.
  • 1.75V input pulse driving.
  • Ultra low saturation voltage - 0.36V@200mA, VDD=5V - 0.57V@300mA, VDD=5V.
  • Ultra-low standby current.
  • Build-in MOSFET shoot through protection circuit to prevent from device damage by fast output transient.
  • SOT23-6L package.
  • A/B versions selectable - Ver. A in dual-wire control - Ver. B in one-shot mode control.

📥 Download Datasheet

Datasheet preview – ET1511B

Datasheet Details

Part number ET1511B
Manufacturer ESMT
File Size 698.22 KB
Description Infrared Filter Switch Driver
Datasheet download datasheet ET1511B Datasheet

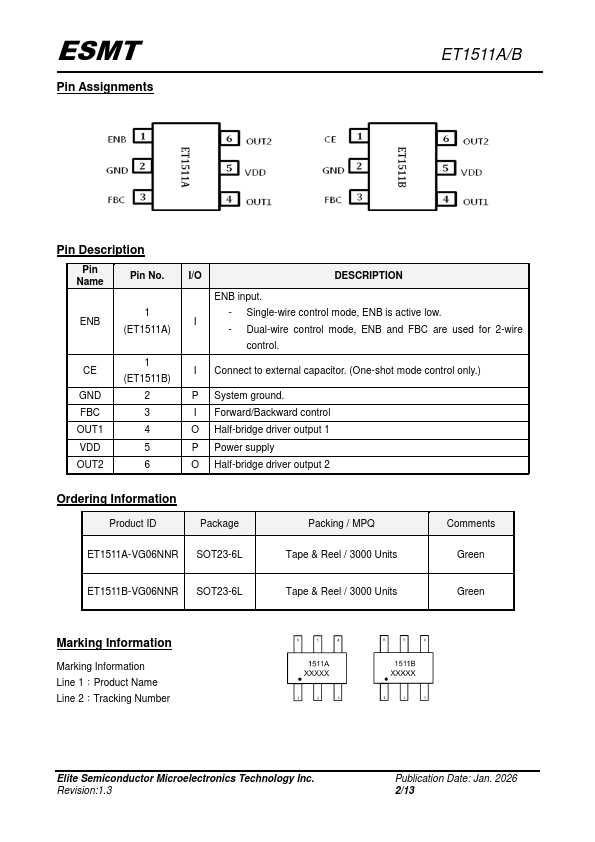

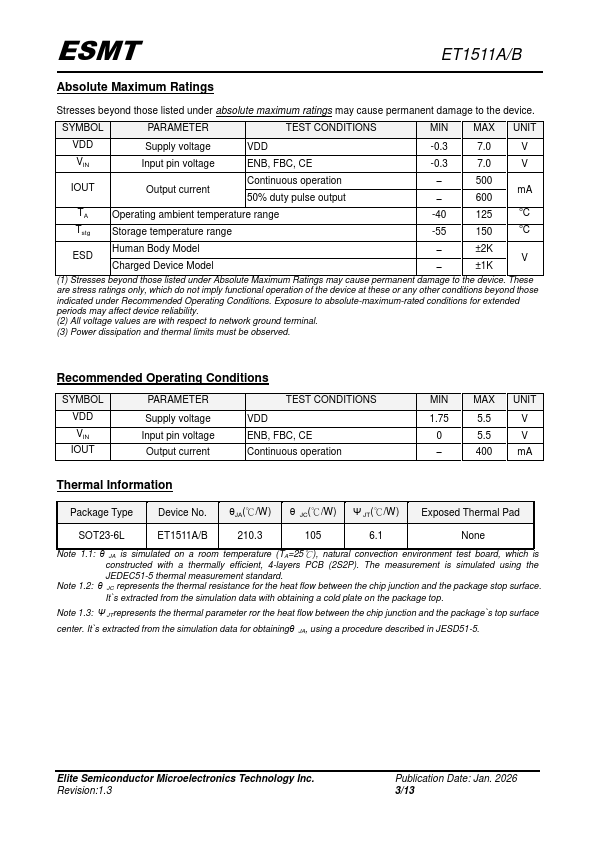

Additional preview pages of the ET1511B datasheet.

📁 Similar Datasheet

  • ET1 - VARIOUS MOTOR AND HEATER CONTROL (NEC)
  • ET1-B3M1 - VARIOUS MOTOR AND HEATER CONTROL (NEC)
  • ET1-B3M1S - VARIOUS MOTOR AND HEATER CONTROL (NEC)
  • ET10005 - High-power Super Fast Rectifier (CITC)
  • ET10005CT - Dual High-power Super Fast Rectifier (CITC)
  • ET1001 - High-power Super Fast Rectifier (CITC)
  • ET1001CT - Dual High-power Super Fast Rectifier (CITC)
  • ET1002 - High-power Super Fast Rectifier (CITC)
  • ET1002CT - Dual High-power Super Fast Rectifier (CITC)
  • ET1004 - High-power Super Fast Rectifier (CITC)
Other Datasheets by ESMT
  • ET1511A - Infrared Filter Switch Driver

Full PDF Text Transcription

Click to expand full text
ESMT Infrared Filter Switch Driver ET1511A/B Features  1.75V to 5.5V operation voltage range  1.75V input pulse driving  Ultra low saturation voltage - 0.36V@200mA, VDD=5V - 0.57V@300mA, VDD=5V  Ultra-low standby current  Build-in MOSFET shoot through protection circuit to prevent from device damage by fast output transient  SOT23-6L package  A/B versions selectable - Ver. A in dual-wire control - Ver. B in one-shot mode control Applications  IR surveillance camera filter driver  Body worn video  Wearable IR camera  Smart locker Description ET1511A/B is an infrared filter switch driver IC which designed for filter control driving in IR cut module in camera.
