FE82100

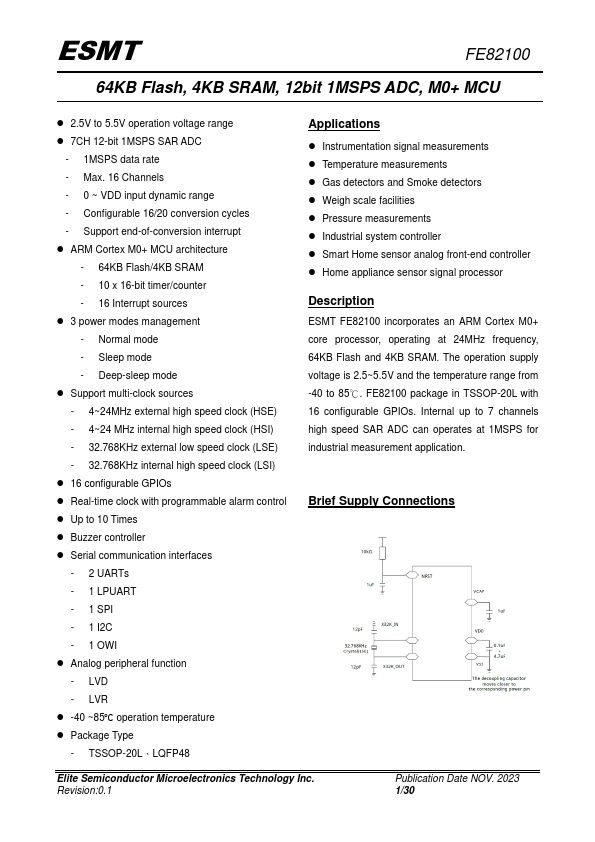

Description
ESMT FE82100 incorporates an ARM Cortex M0+ core processor, operating at 24MHz frequency, 64KB Flash and 4KB SRAM. The operation supply voltage is 2.5~5.5V and the temperature range from -40 to 85℃. FE82100 package in TSSOP-20L with 16 configurable GPIOs. Internal up to 7 channels high speed SAR ADC can operates at 1MSPS for industrial measurement application.
Brief Supply Connections
Elite Semiconductor Microelectronics Technology Inc. Revision:0.1
Publication Date NOV. 2023 1/30
ESMT

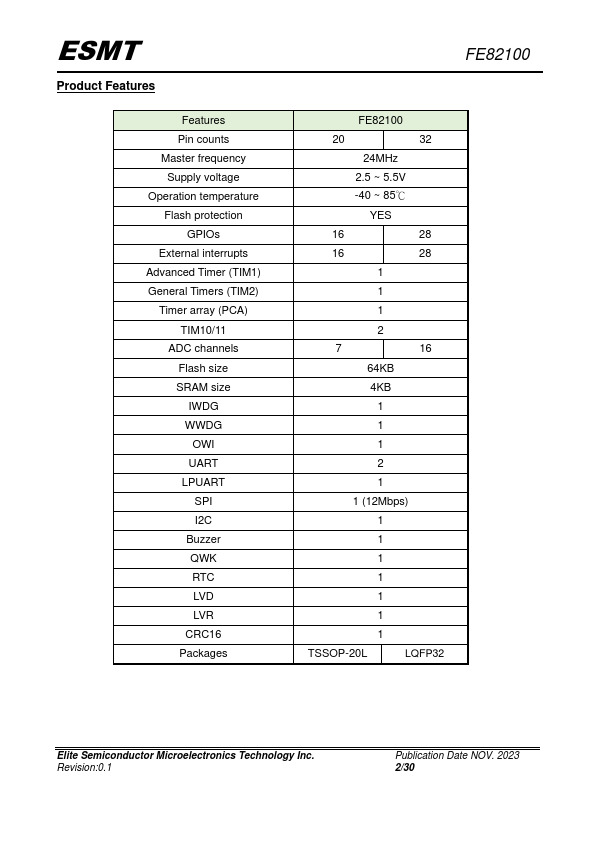

Product Features
Features
Pin counts Master frequency Supply voltage Operation temperature Flash protection
GPIOs External interrupts Advanced Timer (TIM1) General Timers (TIM2) Timer array (PCA)
TIM10/11 ADC channels
Flash size SRAM size
IWDG WWDG
OWI UART LPUART
SPI I2C Buzzer QWK RTC LVD LVR CRC16 Packages
24MHz
2.5 ~ 5.5V
-40 ~ 85℃
64KB
4KB
1 (12Mbps)
TSSOP-20L
LQFP32
