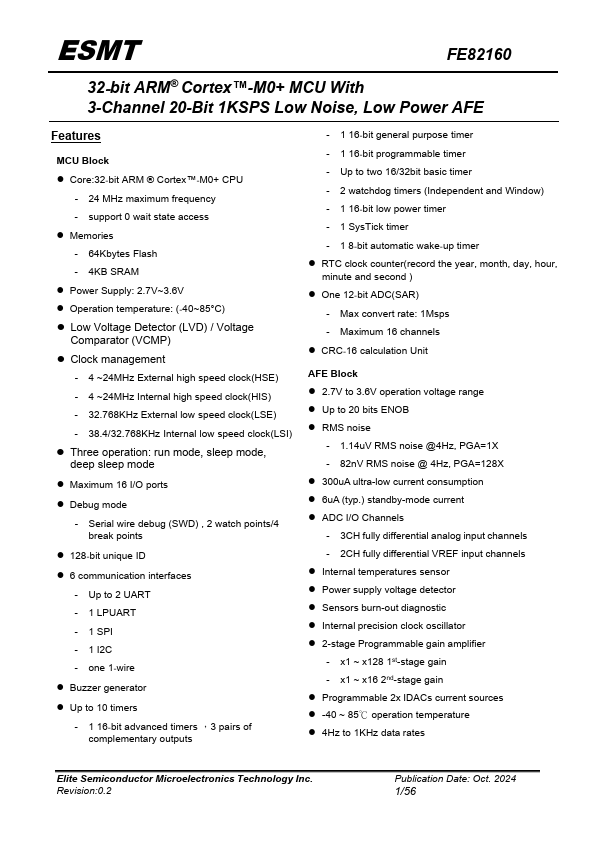

FE82160
Features
MCU Block
- Core:32‐bit ARM ® Cortex™‐M0+ CPU
- 24 MHz maximum frequency
- support 0 wait state access
- Memories
- 64Kbytes Flash
- 4KB SRAM
- Power Supply: 2.7V~3.6V
- Operation temperature: (‐40~85°C)
- Low Voltage Detector (LVD) / Voltage parator (VCMP)
- Clock management
- 4 ~24MHz External high speed clock(HSE)
- 4 ~24MHz Internal high speed clock(HIS)
- 32.768KHz External low speed clock(LSE)
- 38.4/32.768KHz Internal low speed clock(LSI)
- Three operation: run mode, sleep mode, deep sleep mode
- Maximum 16 I/O ports
- Debug mode
- Serial wire debug (SWD) , 2 watch points/4 break points
- 128‐bit unique ID
- 6 munication interfaces
- Up to 2 UART
- 1 LPUART
- 1 SPI
- 1 I2C
- one 1‐wire
- Buzzer generator
- Up to 10 timers
- 1 16‐bit advanced timers ，3 pairs of plementary outputs
- 1 16‐bit general purpose timer
- 1 16‐bit programmable timer
- Up to two 16/32bit basic timer
- 2 watchdog timers (Independent and Window)
- 1 16‐bit low power timer
- 1 Sys Tick timer
- 1...
