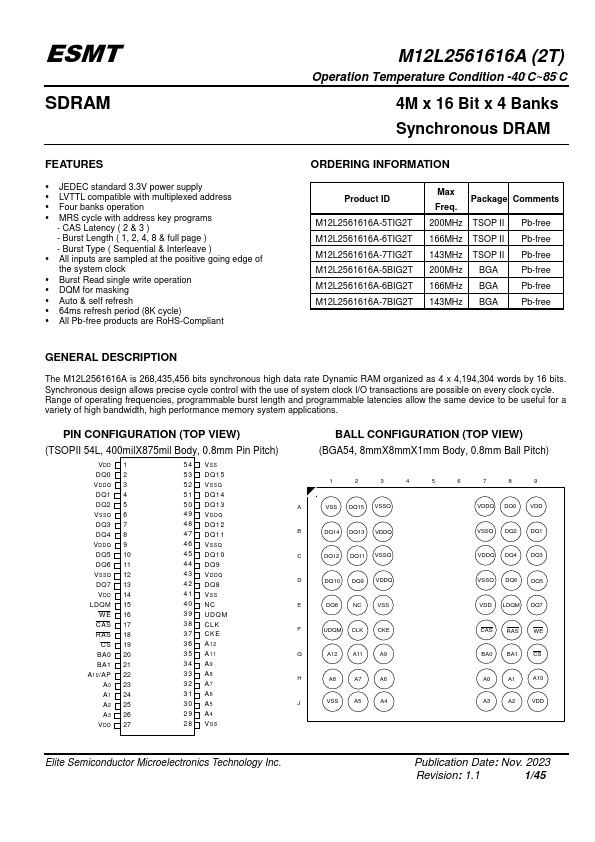

Datasheet Summary
ESMT
SDRAM
Features
- JEDEC standard 3.3V power supply
- LVTTL patible with multiplexed address
- Four banks operation
- MRS cycle with address key programs
- CAS Latency ( 2 & 3 )
- Burst Length ( 1, 2, 4, 8 & full page )
- Burst Type ( Sequential & Interleave )
- All inputs are sampled at the positive going edge of the system clock
- Burst Read single write operation
- DQM for masking
- Auto & self refresh
- 64ms refresh period (8K cycle)
- All Pb-free products are RoHS-pliant
M12L2561616A (2T)
Operation Temperature Condition -40°C~85°C
4M x 16 Bit x 4 Banks Synchronous DRAM
ORDERING INFORMATION
Product ID
M12L2561616A-5TIG2T M12L2561616A-6TIG2T M12L2561616A-7TIG2T M12L2561616A-5B...
