Download M14F2561616A Datasheet PDF

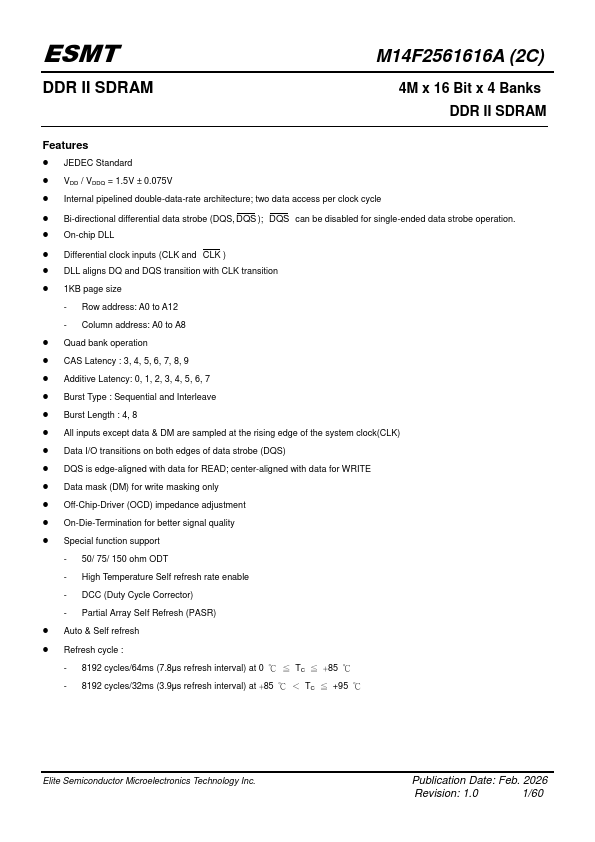

M14F2561616A datasheet preview

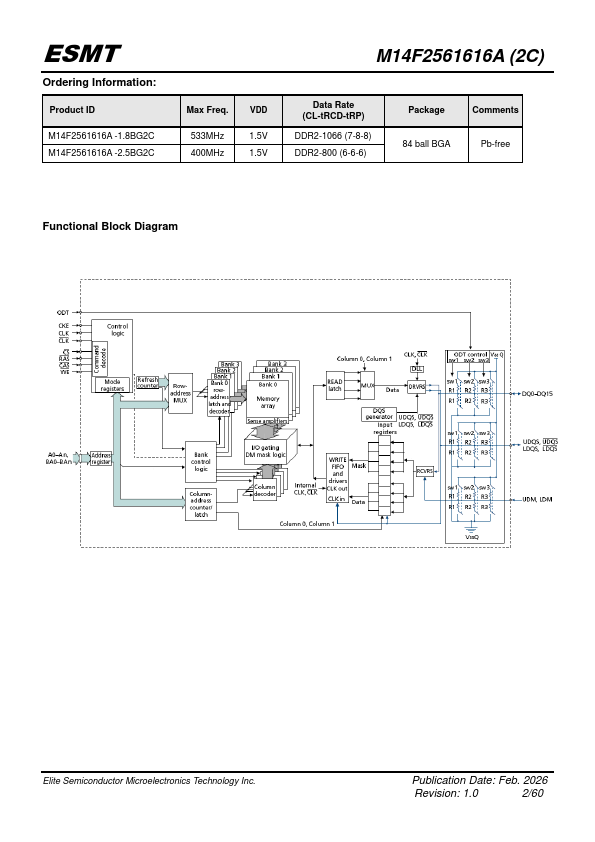

M14F2561616A page 2
Page 2

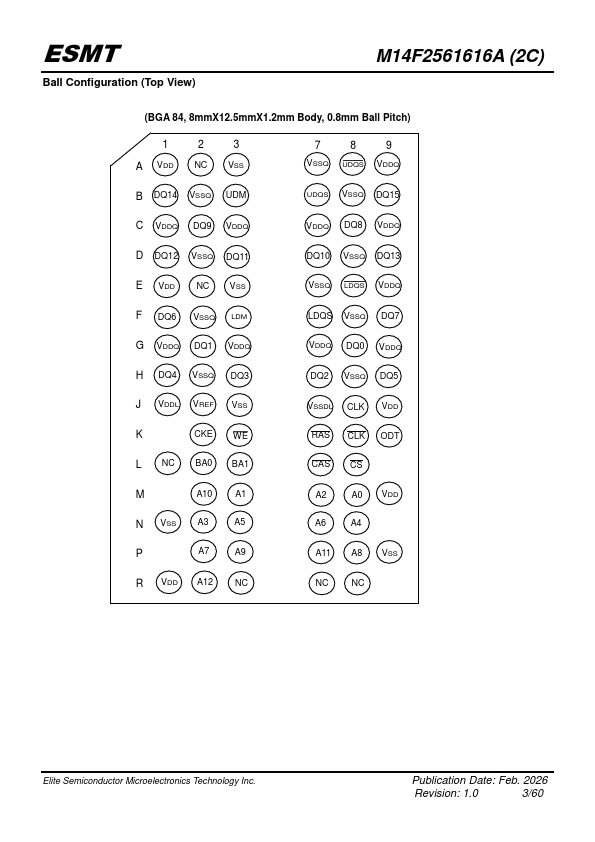

M14F2561616A page 3
Page 3

M14F2561616A Key Features

  • JEDEC Standard
  • VDD / VDDQ = 1.5V ± 0.075V
  • Internal pipelined double-data-rate architecture; two data access per clock cycle
  • Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation
  • On-chip DLL
  • Differential clock inputs (CLK and CLK )
  • DLL aligns DQ and DQS transition with CLK transition
  • 1KB page size
  • Row address: A0 to A12
  • Column address: A0 to A8

Related Elite Semiconductor Microelectronics Technology Datasheets

Part Number Description
M14F5121632A DDR II SDRAM
M14D128168A 2M x 16 Bit x 4 Banks DDR II SDRAM
M14D128168A-1.5BG2Y 2M x 16 Bit x 4 Banks DDR II SDRAM
M14D128168A-1.6BG2Y 2M x 16 Bit x 4 Banks DDR II SDRAM
M14D128168A-1.8BG2Y 2M x 16 Bit x 4 Banks DDR II SDRAM

M14F2561616A Description

Auto Precharge BA0, BA1 : Bank selects (4 Banks) Data-in/Data-out mand input mand input mand input Ground Power Bi-directional differential Data Strobe. LDQS and LDQS are DQS for DQ0~DQ7;.
