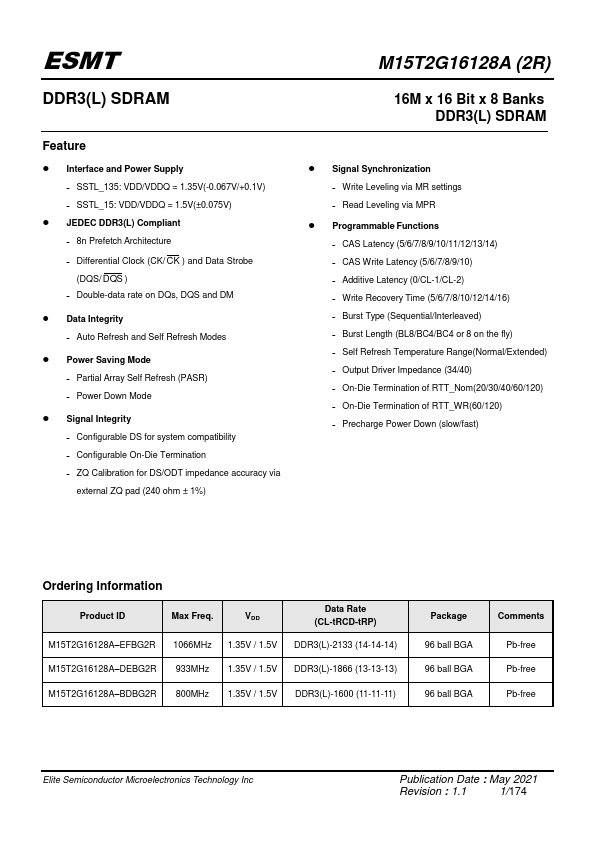

M15T2G16128A-EFBG2R datasheet by ESMT (Elite Semiconductor Microelectronics Technology).
| Part number | M15T2G16128A-EFBG2R |
|---|---|
| Datasheet | M15T2G16128A-EFBG2R-ESMT.pdf |
| File Size | 7.42 MB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| Description | 16M x 16 Bit x 8 Banks DDR3 SDRAM |
|
|

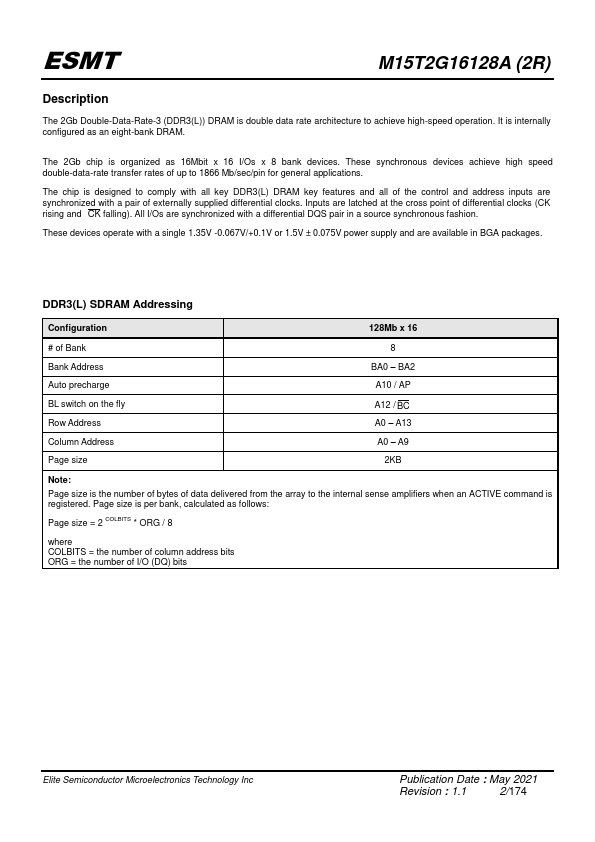

The 2Gb Double-Data-Rate-3 (DDR3(L)) DRAM is double data rate architecture to achieve high-speed operation. It is internally configured as an eight-bank DRAM. The 2Gb chip is organized as 16Mbit x 16 I/Os x 8 bank devices.
