M52D2561616A-6BG2F
Description

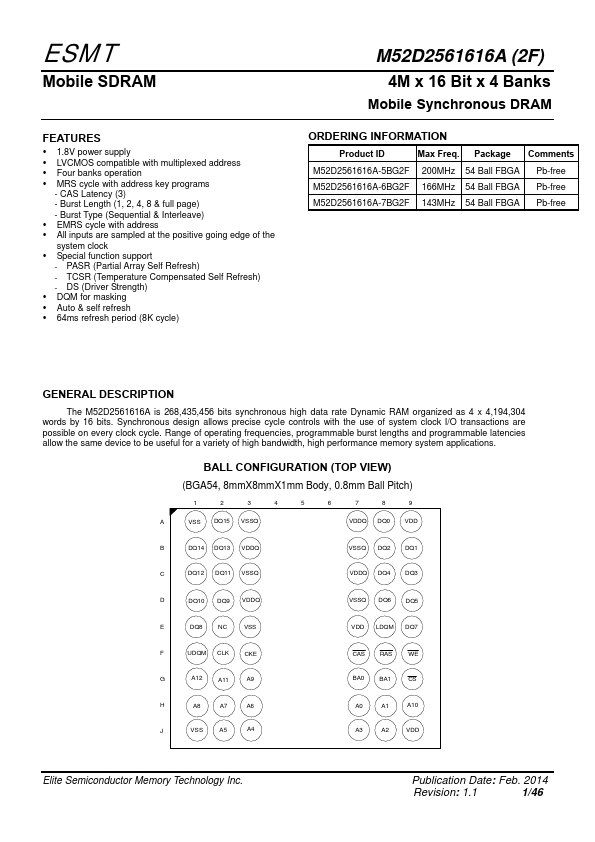

The M52D2561616A is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 4,194,304 words by 16 bits. Synchronous design allows precise cycle controls with the use of system clock I/O transactions are possible on every clock cycle.
Key Features
- CAS Latency (3)
- Burst Length (1, 2, 4, 8 & full page)
- PASR (Partial Array Self Refresh)
