ES9017 - 32-bit High-Performance 8-Channel DAC

ESS Technology

General Description

32-bit audio DAC with high dynamic range & ultra-low distortion Excellent True dynamic range and low distortion High Sample Rates Up to PCM 768kHz & native DSD512 7 Built-In Filter Characteristics Multiple Input Formats and High Sample Rates I²C/SPI Software Interface Control or Hardware Interfac

📥 Download Datasheet

ES9017 32-bit high-performance 8-channel dac by ESS Technology - Datasheet Preview

Datasheet Details

Part number	ES9017
Manufacturer	ESS Technology
File Size	2.64 MB
Description	32-bit High-Performance 8-Channel DAC
Datasheet	ES9017 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by ESS Technology

Part Number	Description
ES9010K2M	Premier Stereo Low Power Audio DAC
ES9012	Reference 32-bit Audio DAC
ES9016	Ultra 32-bit 8-Channel Audio DAC
ES9016K2M	Ultra 32-bit Stereo Low Power Audio DAC
ES9018	Reference 32-bit Audio DAC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

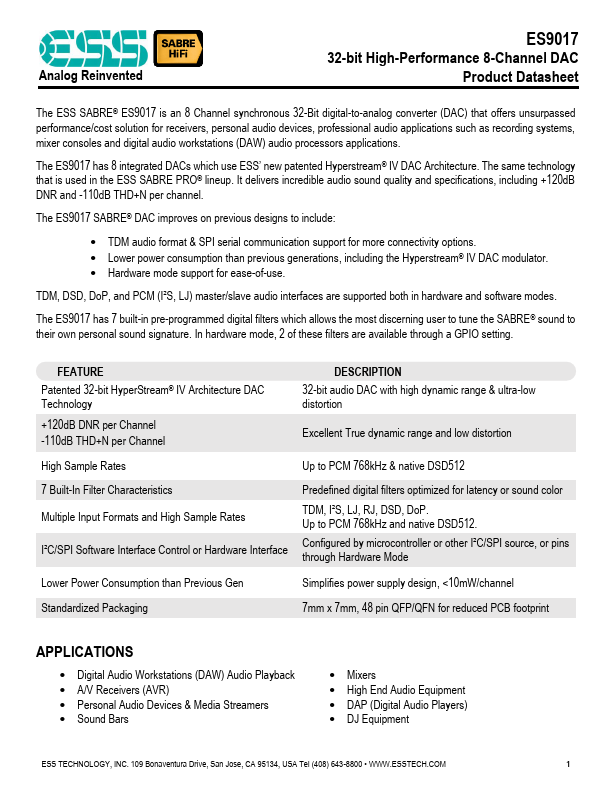

Analog Reinvented ES9017 32-bit High-Performance 8-Channel DAC Product Datasheet The ESS SABRE® ES9017 is an 8 Channel synchronous 32-Bit digital-to-analog converter (DAC) that offers unsurpassed performance/cost solution for receivers, personal audio devices, professional audio applications such as recording systems, mixer consoles and digital audio workstations (DAW) audio processors applications. The ES9017 has 8 integrated DACs which use ESS’ new patented Hyperstream® IV DAC Architecture. The same technology that is used in the ESS SABRE PRO® lineup. It delivers incredible audio sound quality and specifications, including +120dB DNR and -110dB THD+N per channel.
