ES9026PRO Datasheet PDF

ESS ES9026PRO

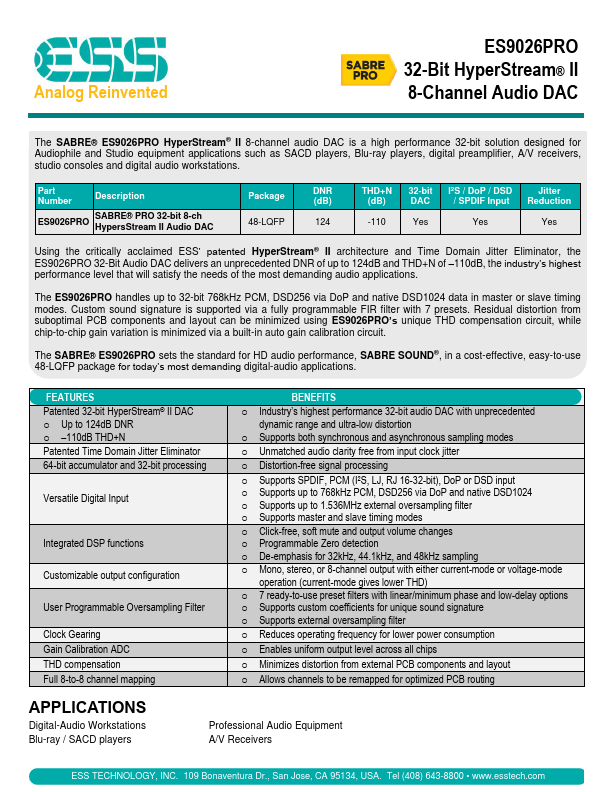

the ES9026PRO 32-Bit Audio DAC delivers an unprecedented DNR of up to 124dB and THD+N of –110dB, the industry’s highest performance level that will satisfy the needs of the most demanding audio applications. The ES9026PRO handles up to 32-bit 768kHz PCM, DSD256 via DoP and native DSD1024 data in master or slave timing modes. The SABRE® ES9026PRO sets the standard for HD audio performance, SABRE SOUND®, in a cost-effective, easy-to-use 48-LQFP package for today’s most demanding digital-audio applications.

Part No.	ES9026PRO
Datasheet	ES9026PRO Download
Manufacturer	ESS
Description	32-Bit HyperStream-II 8-Channel Audio DAC
Buy	Stock & Price

DESCRIPTION

ES9026PRO SABRE® PRO 32-bit 8-ch HypersStream II Audio DAC Package 48-LQFP DNR (dB) 124 THD+N (dB) -110 32-bit DAC Yes I2S / DoP / DSD Jitter / SPDIF Input Reduction Yes Yes Using the critically acclaimed ESS’ patented HyperStream® II architecture and Time Domain Jitter Eliminator, Custom sound signature is supported via a fully programmable FIR filter with 7 presets. Residual distortion from suboptimal PCB components and layout can be minimized using ES9026PRO’s unique THD compensation circuit, while chip-to-chip gain variation is minimized via a built-in auto gain calibration circuit.

FEATURES

Patented 32-bit HyperStream® II DAC o Up to 124dB DNR o –110dB THD+N Patented Time Domain Jitter Eliminator 64-bit accumulator and 32-bit processing Versatile Digital Input Integrated DSP functions Customizable output configuration User Programmable Oversampling Filter Clock Gearing Gain Calibration ADC THD compensation Full 8-to-8 channel mapping BENEFITS o Industry’s highest perfo...
