ES9027PRO Datasheet | ESS Technology

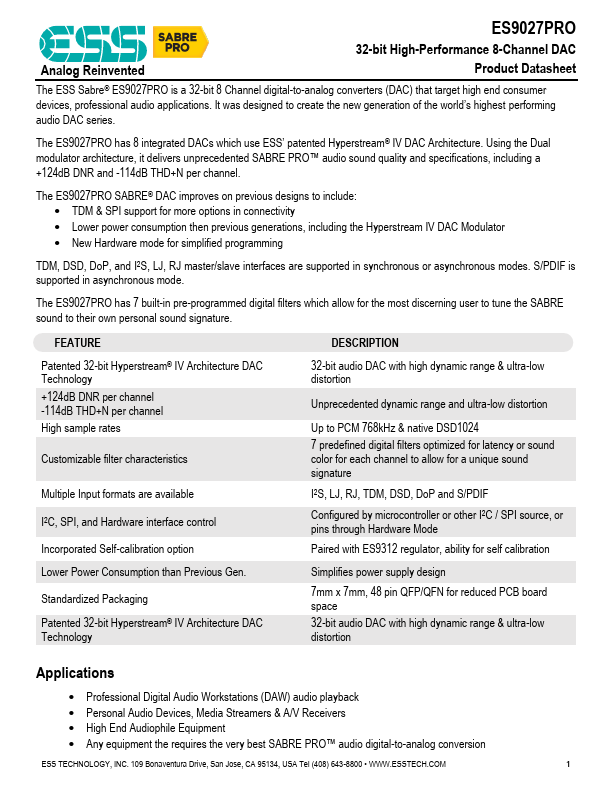

FEATURE Patented 32-bit Hyperstream® IV Architecture DAC Technology +124d B DNR per channel -114d B THD+N per channel High sample rates Customizable filter characteristics Multiple Input formats are available I2C, SPI, and Hardware interface control Incorporated Self-calibration option DESCRIPTION 32-bit audio DAC with high dynamic range & ultra-low distortion Unprecedented dynamic range and ultra-low distortion Up to PCM 768k Hz & native DSD1024 7 predefined digital filters optimized for latency or sound color for each channel to allow for a unique sound signature I2S, LJ, RJ, TDM, DSD, Do P and S/PDIF Configured by microcontroller or other I2C / SPI source, or pins through Hardware Mode Paired with ES9312 regulator, ability for self calibration Lower Power Consumption than Previous Gen. Standardized Packaging Patented 32-bit Hyperstream® IV Architecture DAC Technology Simplifies power supply design 7mm x 7mm, 48 pin QFP/QFN for reduced PCB board space 32-bit audio DAC with high dynamic range & ultra-low distortion Applications - Professional Digital Audio Workstations (DAW) audio playback - Personal Audio Devices, Media Streamers & A/V Receivers - High End Audiophile Equipment - Any equipment the requires the very best SABRE PRO™ audio digital-to-analog conversion ESS TECHNOLOGY, INC. 109 Bonaventura Drive, San Jose, CA 95134, USA Tel (408) 643-8800 - .ESSTECH. CONFIDENTIAL ADVANCE IVNEFORRSMIOANTI0O.N5 ES9027PRO Product Datasheet Table of Contents Applications 1 Table of Contents...
