ES9039MSPRO - 32-bit High-Performance 8-Channel DAC

General Description

Patented 32-bit HyperStream® IV Architecture DAC Technology +140dB DNR mono mode +132db DNR per channel -122dB THD+N mono MQA Renderer (ES9039MPRO only) High Sample Rates Customizable filter characteristics Multiple Input formats are available I²C, SPI, and Hardware interface control Lower Power Co

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by ESS Technology

Part Number Description
ES9039MPRO 32-bit High-Performance 8-Channel DAC
ES9039PRO 32-bit High-Performance 8-Channel DAC
ES9039Q2M 32-bit High performance 2-Channel DAC
ES9039SPRO 32-bit High-Performance 8-Channel DAC
ES9033 32-bit High-Performance 2-Channel DAC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

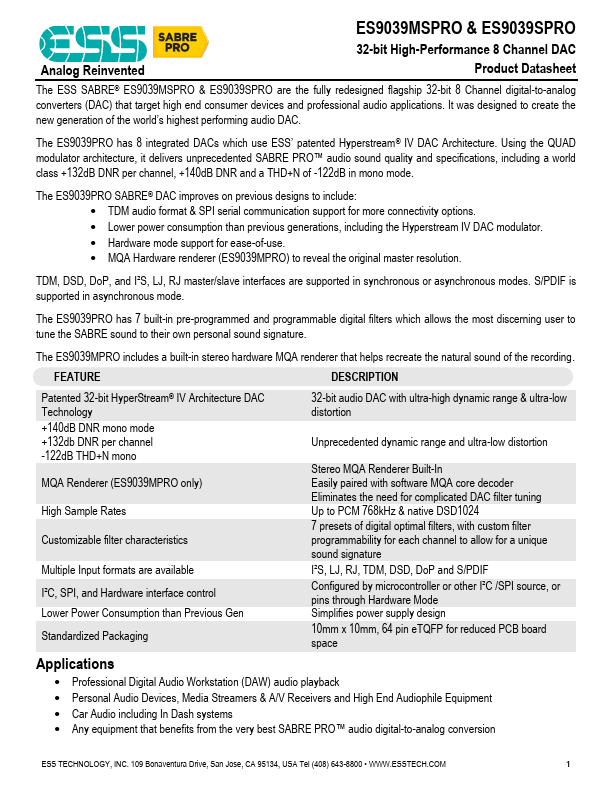

ES9039MSPRO & ES9039SPRO 32-bit High-Performance 8 Channel DAC Analog Reinvented Product Datasheet The ESS SABRE® ES9039MSPRO & ES9039SPRO are the fully redesigned flagship 32-bit 8 Channel digital-to-analog converters (DAC) that target high end consumer devices and professional audio applications. It was designed to create the new generation of the world’s highest performing audio DAC. The ES9039PRO has 8 integrated DACs which use ESS’ patented Hyperstream® IV DAC Architecture. Using the QUAD modulator architecture, it delivers unprecedented SABRE PRO™ audio sound quality and specifications, including a world class +132dB DNR per channel, +140dB DNR and a THD+N of -122dB in mono mode.
