ES9822PRO - 32-bit High-Performance 2-Channel ADC

Description

Unprecedented dynamic range and ultra-low distortion Up to PCM 768kHz, including 1.536MHz w/Double Data rates Up to DSD512 Available for custom FIR filters for any applications, including RIAA PCM, TDM, DSD, S/PDIF, RAW 8 presets, and programmable filter coefficients for custom sound signature 2 aud

Features

  • 9 Digital Signal Path.

📥 Download Datasheet

Datasheet preview – ES9822PRO

Datasheet Details

Part number ES9822PRO
Manufacturer ESS
File Size 1.93 MB
Description 32-bit High-Performance 2-Channel ADC
Datasheet download datasheet ES9822PRO Datasheet

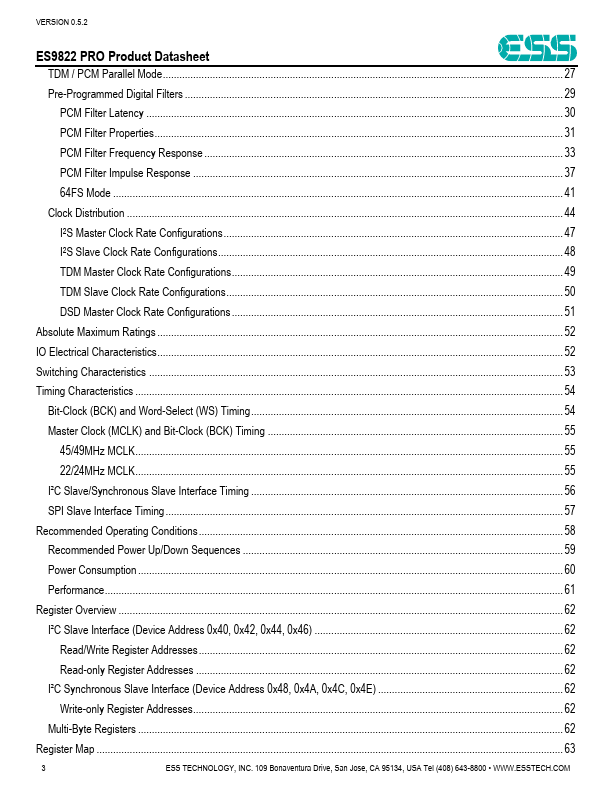

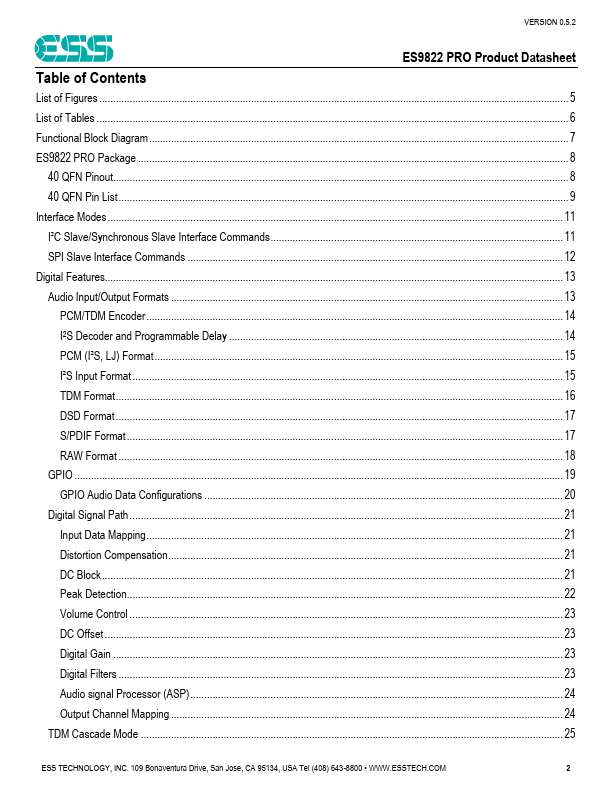

Additional preview pages of the ES9822PRO datasheet.

📁 Similar Datasheet

Other Datasheets by ESS
  • ES9820 - 32-bit High-Performance 2-Channel ADC
  • ES9821Q - 32-bit High Performance 2-Channel ADC
  • ES9826 - 32-bit High performance 2-Channel ADC
  • ES9840 - 32-bit High-Performance 4-Channel ADC
  • ES9842PRO - 32-bit High-Performance 4-Channel ADC
  • ES9008 - Reference 8-Channel Audio DAC
  • ES9010K2M - Premier Stereo Low Power Audio DAC
  • ES9012 - Reference 32-bit Audio DAC

Full PDF Text Transcription

Click to expand full text

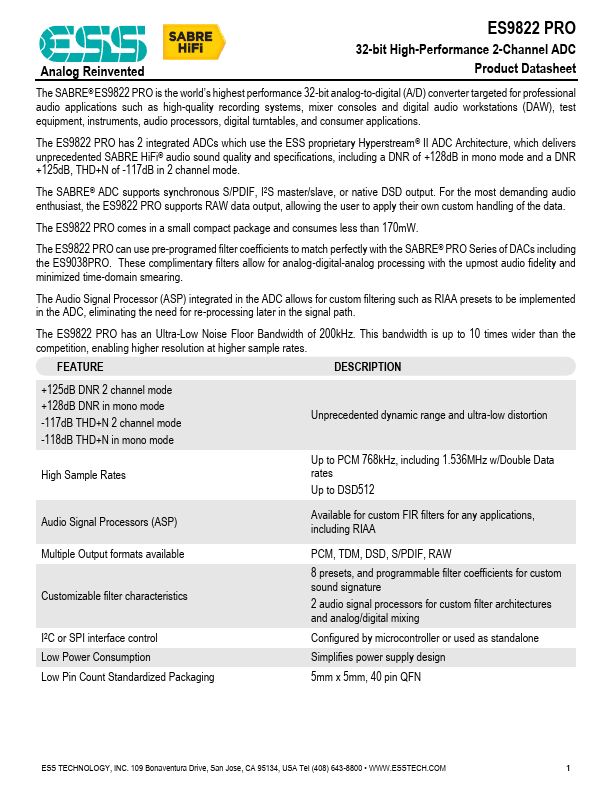

Analog Reinvented ES9822 PRO 32-bit High-Performance 2-Channel ADC Product Datasheet The Sabre ES9822 PRO is the world’s highest performance 32-bit analog-to-digital (A/D) converter targeted for professional audio applications such as recording systems, mixer consoles and digital audio workstations (DAW), test equipment, instruments, audio processors, digital turntables, and consumer applications. The ES9822 PRO has 2 integrated ADCs which use the ESS proprietary Hyperstream® II ADC Architecture, which delivers unprecedented audio sound quality and specifications, including a DNR of 128dB in mono mode and a DNR 125dB, THD+N of -117dB in 2 channel mode. The SABRE® ADC supports synchronous SPDIF, I2S master/slave, or native DSD output.
