ES9823MPRO - 2-Channel High Performance SMART ADC

General Description

+128dB DNR per channel -117dB THD+N per channel High Sample Rates Unprecedented dynamic range with ultra-low noise and distortion Support for sample rates up to and including 768kHz & DSD512 MQA FOQUS Architecture (ES9823MPRO) Integrated Stereo FOQUS by MQA Labs® architecture Integrated Audio Si

Key Features

  • a I²C to SPI Transcoder for SPI Flash Memory or controlling peripherals S/PDIF Encoding Stereo S/PDIF format from analog-to-digital conversion or from TDM/PCM input Customizable Filter Selection 8 preset digital filters + custom FIR filter programming Low Pin Count Standardized Packages 5mm x 5mm, 40 pin QFN, drop-in compatible with ES9822PRO/ES9820 (See pinout).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by ESS Technology

Part Number Description
ES9823PRO 2-Channel High Performance SMART ADC
ES9820 32-bit High-Performance 2-Channel ADC
ES9821 32-bit High Performance 2-Channel ADC
ES9821Q 32-bit High Performance 2-Channel ADC
ES9822PRO 32-bit High-Performance 2-Channel ADC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

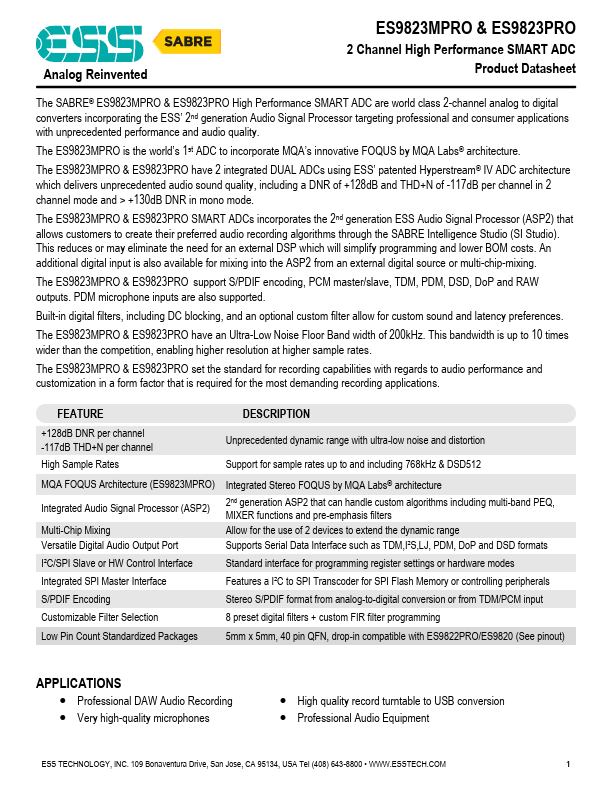

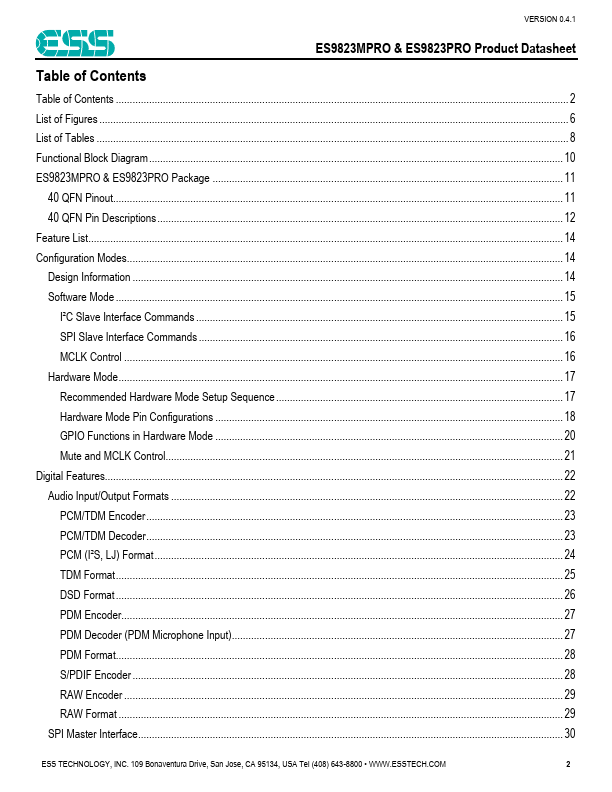

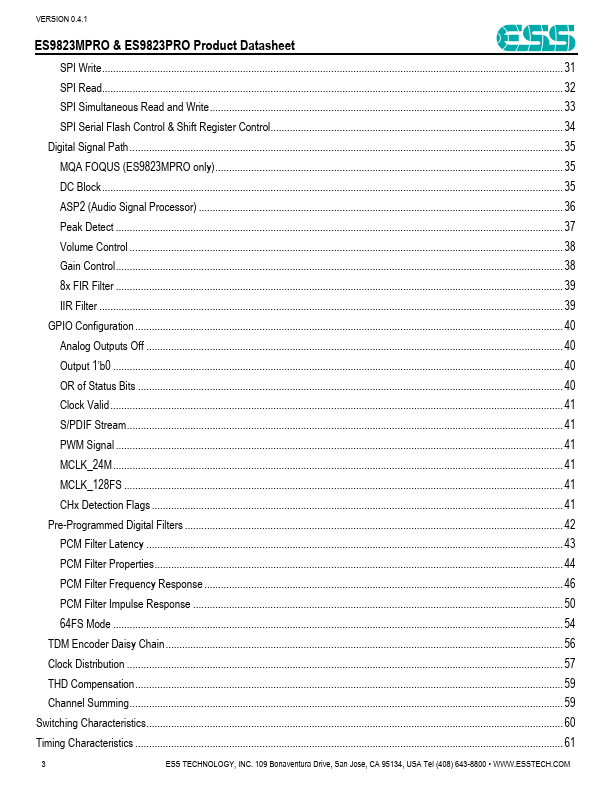

Analog Reinvented ES9823MPRO & ES9823PRO 2 Channel High Performance SMART ADC Product Datasheet The SABRE® ES9823MPRO & ES9823PRO High Performance SMART ADC are world class 2-channel analog to digital converters incorporating the ESS’ 2nd generation Audio Signal Processor targeting professional and consumer applications with unprecedented performance and audio quality. The ES9823MPRO is the world’s 1st ADC to incorporate MQA’s innovative FOQUS by MQA Labs® architecture. The ES9823MPRO & ES9823PRO have 2 integrated DUAL ADCs using ESS’ patented Hyperstream® IV ADC architecture which delivers unprecedented audio sound quality, including a DNR of +128dB and THD+N of -117dB per channel in 2 channel mode and > +130dB DNR in mono mode.
