ES9842PRO - 32-bit High-Performance 4-Channel ADC

Description

+122dB DNR 4 channel mode, +128dB DNR in mono mode -116dB THD+N 4 channel mode -118dB THD+N mono mode s High Sample Rates Audio Signal Processors (ASP) Multiple Output formats available Customizable filter characteristics I2C or SPI interface control Integrated low noise ADC reference regulators Lo

Features

  • 12 Digital Signal Path 12 Distortion Compensation.

📥 Download Datasheet

Datasheet preview – ES9842PRO

Datasheet Details

Part number ES9842PRO
Manufacturer ESS
File Size 2.84 MB
Description 32-bit High-Performance 4-Channel ADC
Datasheet download datasheet ES9842PRO Datasheet

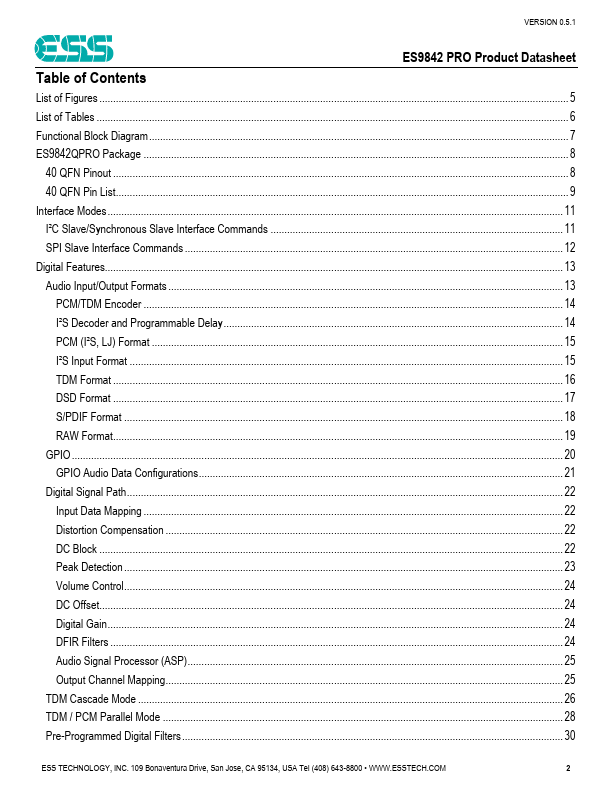

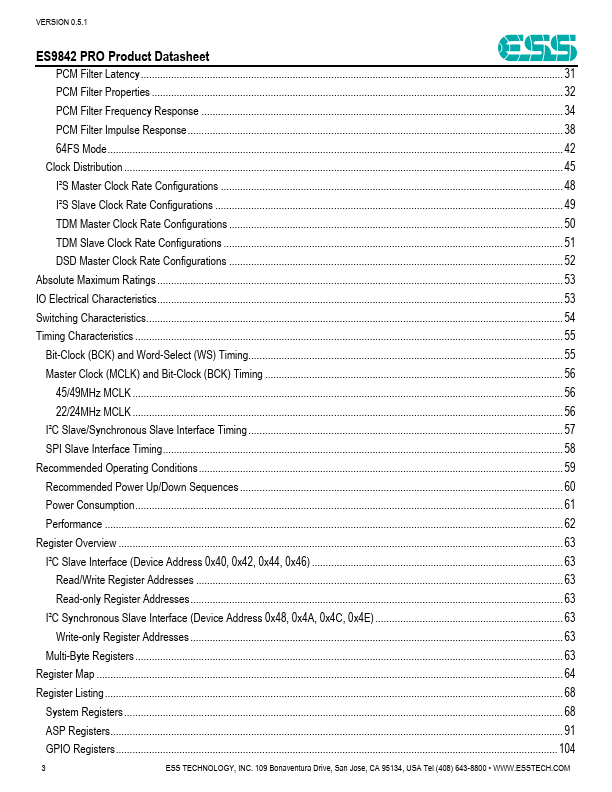

Additional preview pages of the ES9842PRO datasheet.

📁 Similar Datasheet

Other Datasheets by ESS
  • ES9840 - 32-bit High-Performance 4-Channel ADC
  • ES9820 - 32-bit High-Performance 2-Channel ADC
  • ES9821Q - 32-bit High Performance 2-Channel ADC
  • ES9822PRO - 32-bit High-Performance 2-Channel ADC
  • ES9826 - 32-bit High performance 2-Channel ADC
  • ES9008 - Reference 8-Channel Audio DAC
  • ES9010K2M - Premier Stereo Low Power Audio DAC
  • ES9012 - Reference 32-bit Audio DAC

Full PDF Text Transcription

Click to expand full text

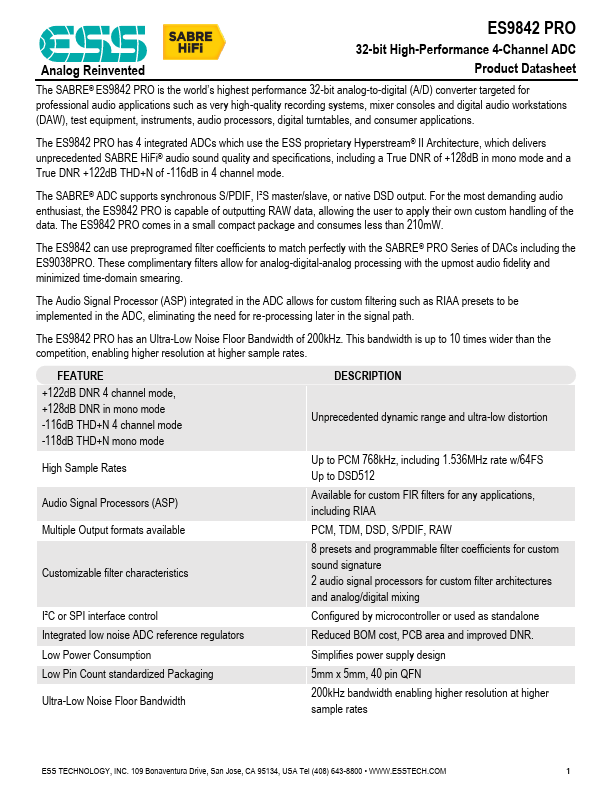

Analog Reinvented ES9842 PRO 32-bit High-Performance 4-Channel ADC Product Datasheet The Sabre ES9842 PRO is the world’s highest performance 32-bit analog-to-digital (A/D) converter targeted for professional audio applications such as recording systems, mixer consoles and digital audio workstations (DAW), test equipment, instruments, audio processors, digital turntables, and consumer applications. The ES9842 PRO has 4 integrated ADCs which use the ESS proprietary Hyperstream® II Architecture, which delivers unprecedented audio sound quality and specifications, including a DNR of 128dB in mono mode and a DNR +122dB THD+N of -116dB in 4 channel mode. The SABRE ADC supports synchronous S/PDIF, I2S master/slave, or native DSD output.
