ES9843PRO - 4-Channel High Performance SMART ADC

General Description

Unprecedented dynamic range with ultra-low noise and distortion Support for sample rates up to and including 768kHz & DSD512 High performance recording with multiple channels for reduction in board space 2nd generation ASP2 that can handle custom algorithms including multi-band PEQ, MIXER functions

Key Features

  • a I²C to SPI Transcoder for external device interaction Stereo S/PDIF format from analog-to-digital conversion or from TDM/PCM input 8 preset digital filters + custom FIR filter programming 5mm x 5mm, 40 pin QFN, drop-in compatible with ES9842PRO/ES9840 (See pinout).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by ESS Technology

Part Number Description
ES9840 32-bit High-Performance 4-Channel ADC
ES9841 4-Channel High Performance ADC
ES9842PRO 32-bit High-Performance 4-Channel ADC
ES9820 32-bit High-Performance 2-Channel ADC
ES9821 32-bit High Performance 2-Channel ADC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

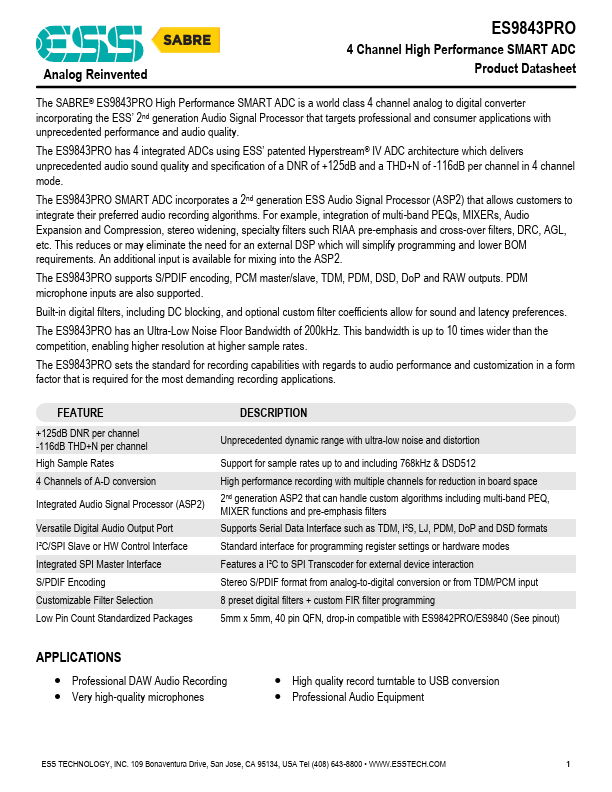

Analog Reinvented ES9843PRO 4 Channel High Performance SMART ADC Product Datasheet The SABRE® ES9843PRO High Performance SMART ADC is a world class 4 channel analog to digital converter incorporating the ESS’ 2nd generation Audio Signal Processor that targets professional and consumer applications with unprecedented performance and audio quality. The ES9843PRO has 4 integrated ADCs using ESS’ patented Hyperstream® IV ADC architecture which delivers unprecedented audio sound quality and specification of a DNR of +125dB and a THD+N of -116dB per channel in 4 channel mode. The ES9843PRO SMART ADC incorporates a 2nd generation ESS Audio Signal Processor (ASP2) that allows customers to integrate their preferred audio recording algorithms.
