ALS-AK510
FEATURES
- Near Human Eye Photopic Response
- High IR Rejection w/ embedded optical filter
- Current Output Highly Linear vs Ambient
Light Level
- Temperature stable
- Integrated photo-current amplifier
- Excellent Dark-Current Performance
- Higher humidity immunity

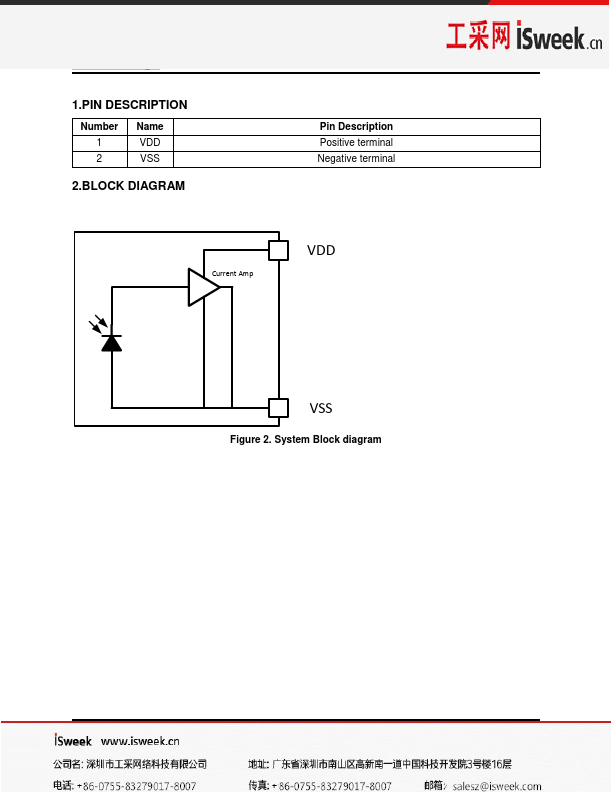

PIN CONFIGURATION
DESCRIPTION

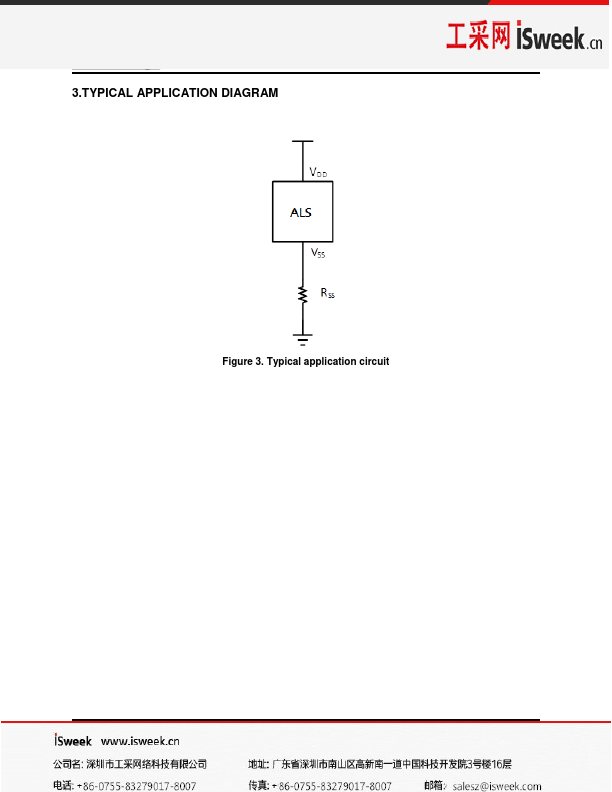

The ALS-AK510 is a low cost visible light sensor, with a current output which is directly proportional to the ambient light level. It has a built in optical filter to provide a response which is close to the human eye, or “photopic”. The output current can be converted to a voltage by connecting it in series with a resistor. The dynamic range is determined by the external resistor and power supply (10K and 5V gives a range of 0 to 160 Lux, but can be over 700 Lux with a 1K resistor). The internal dark current cancellation circuit enables a stable accuracy over the full temperature range, even at low light levels.
ORDERING INFORMATION
Part Number
Package
PALS-L0XXX-A
Figure 1....
