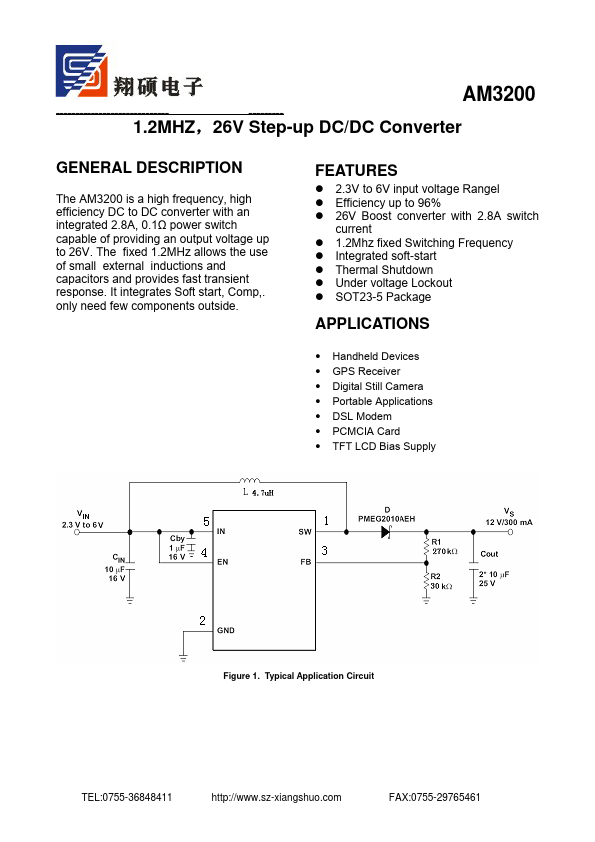

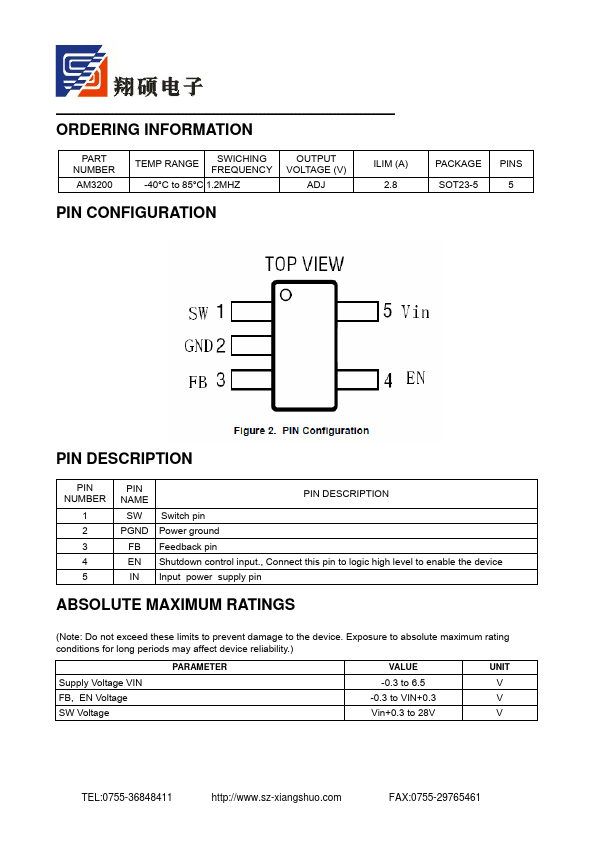

1.2MHZ，26V Step-up DC/DC Converter GENERAL DESCRIPTION The AM3200 is a high frequency, high efficiency DC to DC converter with an integrated 2.8A, 0.1Ω power switch capable of providing an output voltage up to 26V. The fixed 1.2MHz allows the use of small external inductions and capacitors and provides fast transient response. It integrates Soft start, p,. only need few ponents outside. Features z 2.3V to 6V input voltage Rangel z Efficiency up to 96% z 26V Boost converter with 2.8A switch current z 1.2Mhz fixed Switching Frequency z Integrated soft-start z Thermal Shutdown z Under voltage Lockout z SOT23-5 Package APPLICATIONS - Handheld Devices - GPS Receiver - Digital Still Camera - Portable Applications - DSL Modem - PCMCIA Card - TFT LCD Bias Supply Figure 1. Typical Application Circuit TEL:0755-36848411 http://.sz-xiangshuo. FAX:0755-29765461 ORDERING INFORMATION PART NUMBER TEMP RANGE SWICHING FREQUENCY -40°C to 85°C 1.2MHZ OUTPUT VOLTAGE (V) ILIM (A) 2.8 PIN CONFIGURATION PACKAGE SOT23-5 PINS 5 PIN DESCRIPTION PIN NUMBER 1 2 3 4 5 PIN NAME PIN...
