CH217 - USB Current limiting Power Distribution Switch Chip

Description

4.

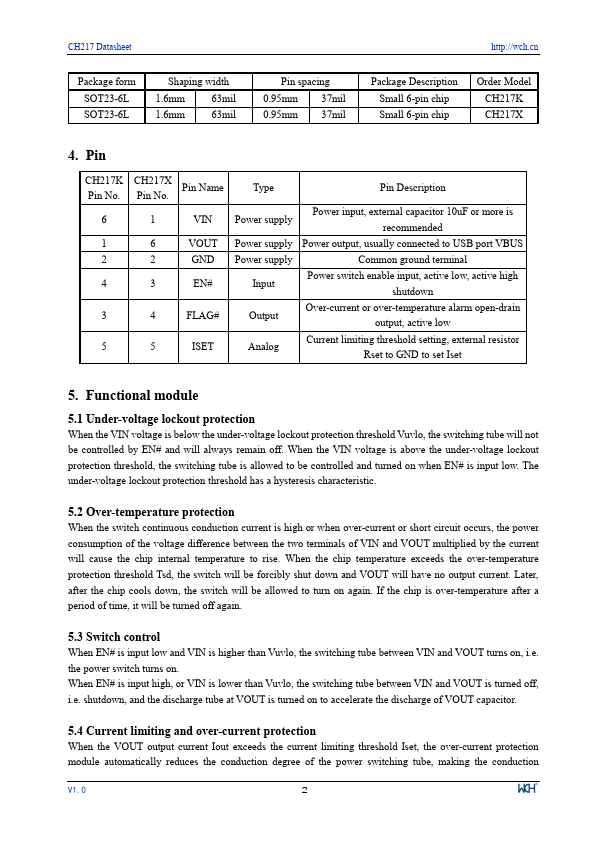

CH217K Pin No.

CH217X Pin No.

📥 Download Datasheet

Datasheet Details

Part number CH217
Manufacturer Unknown Manufacturer
File Size 475.78 KB
Description USB Current limiting Power Distribution Switch Chip
Datasheet download datasheet CH217 Datasheet

📁 Similar Datasheet

  • CH2102 - Power Transistors (RCA)
  • CH20 - HIGH POWER DUAL DIRECTIONAL COUPLERS (Tyco Electronics)
  • CH20-0032-17G - Low Cost SMT 17dB Bi-Directional Coupler 824 - 960 MHz (Tyco Electronics)
  • CH20-0033-17G - Low Cost SMT 17 dB Bi-Directional Coupler 1700 - 2000 MHz (Tyco Electronics)
  • CH20-0058-S - 11 dB Directional Coupler 1500 - 2000 MHz (Tyco Electronics)
  • CH20-0059-S - 11 dB Directional Coupler 500 - 1000 MHz (Tyco Electronics)
  • CH2270 - Power Transistors (RCA)
  • CH2405 - Power Transistors (RCA)
  • CH250S0080 - Schottky Rectifier (Microsemi Corporation)
Other Datasheets by ETC
  • CH224 - USB PD and Other Fast Charging Protocol Sink Controller

Full PDF Text Transcription

Click to expand full text

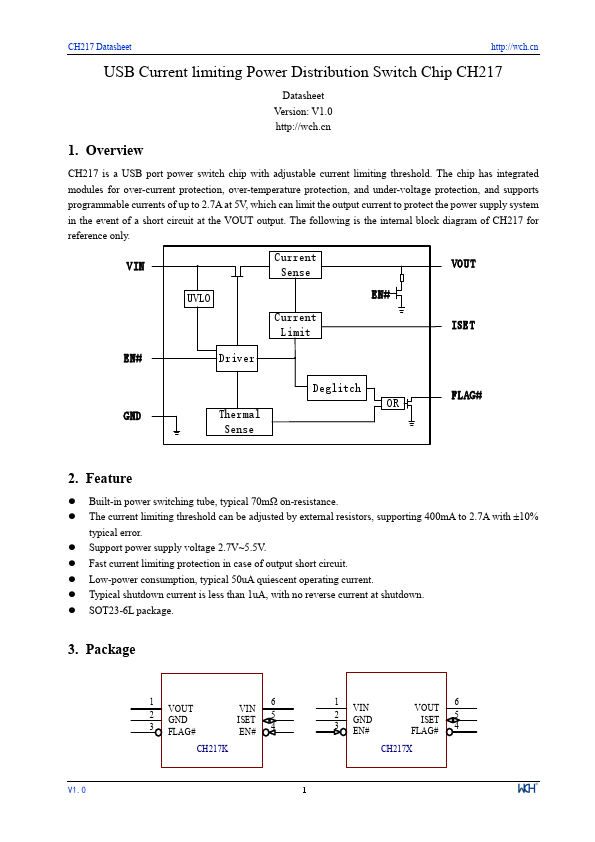

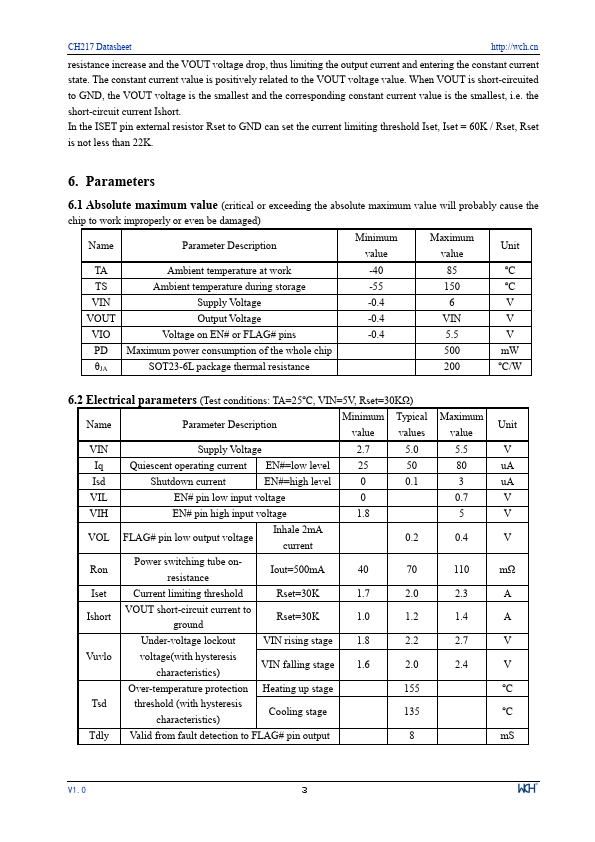

CH217 Datasheet http://wch.cn USB Current limiting Power Distribution Switch Chip CH217 Datasheet Version: V1.0 http://wch.cn 1. Overview CH217 is a USB port power switch chip with adjustable current limiting threshold. The chip has integrated modules for over-current protection, over-temperature protection, and under-voltage protection, and supports programmable currents of up to 2.7A at 5V, which can limit the output current to protect the power supply system in the event of a short circuit at the VOUT output. The following is the internal block diagram of CH217 for reference only. VIN Current Sense VOUT UVLO EN# Current Limit ISET EN# Driver Deglitch OR FLAG# GND Thermal Sense 2. Feature l Built-in power switching tube, typical 70mΩ on-resistance.
