Positive power input, an external 0.1uF power decoupling capacitor is required.
Common ground, shall be connected to the ground wire of the USB bus Connected to the VCC input external power at the supply voltage of 3.3V The external capacity is 0.1uF decoupling capacitor at 5V supply voltage Input terminal of the crystal oscillator, required to be connected to an external crystal and oscillation capacitor.
For the built-in clock mode, XI shall be connected to GND Inverted output terminal of the crystal oscillator, required to be connected to an external crystal and oscillation capacitor.

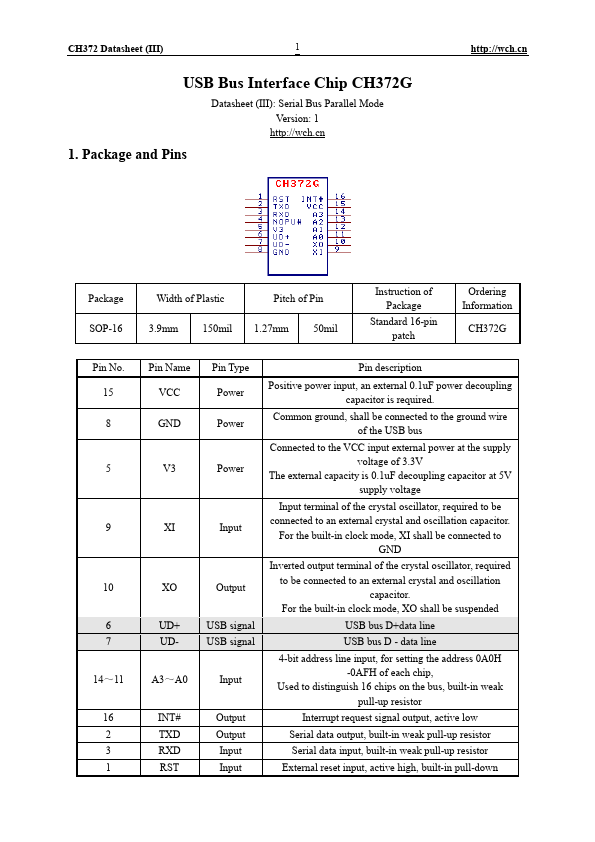

CH372 Datasheet (III) 1 USB Bus Interface Chip CH372G Datasheet (III): Serial Bus Parallel Mode Version: 1 http://wch.cn 1.
Package and Pins http://wch.cn Package SOP-16 Width of Plastic Pitch of Pin 3.9mm 150mil 1.27mm 50mil Instruction of Package Standard 16-pin patch Ordering Information CH372G Pin No.
