FK-130SH-09490 Datasheet | Unknown Manufacturer

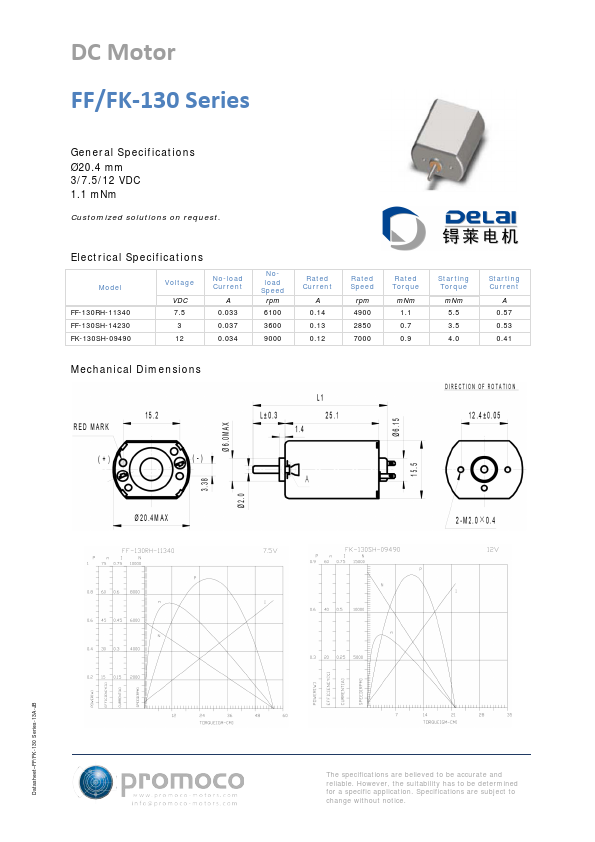

DC Motor FF/FK-130 Series General Specifications Ø20.4 mm 3/7.5/12 VDC 1.1 m Nm Customized solutions on request. Electrical Specifications Model FF-130RH-11340 FF-130SH-14230 FK-130SH-09490 Voltage VDC 7.5 3 12 No-load Current A 0.033 0.037 0.034 Noload Speed rpm Rated Current A 0.14 0.13 0.12 Rated Speed rpm 4900 2850 7000 Rated Torque m Nm 1.1 0.7 0.9 Starting Torque m Nm 5.5 3.5 4.0 Starting Current A 0.57 0.53 0.41 Mechanical Dimensions Datasheet- FF/FK-130 Series-13A-JB The specifications are believed to be accurate and reliable. However, the suitability has to be determined for a specific application. Specifications are subject to change without...
