G150X1-L03-V508 Description

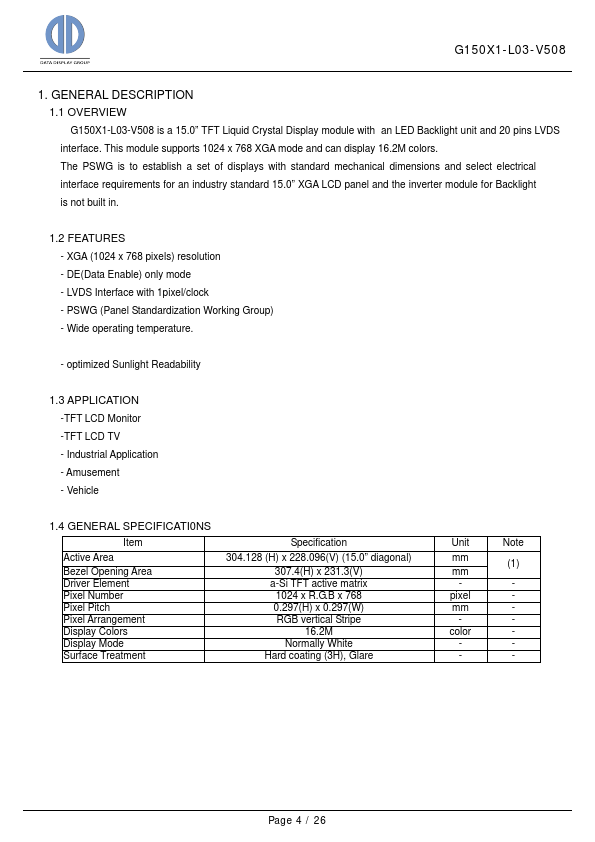

1.1 OVERVIEW G150X1-L03-V508 is a 15.0” TFT Liquid Crystal Display module with an LED Backlight unit and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.2M colors. The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0” XGA LCD panel and the inverter module for Backlight is not built...
G150X1-L03-V508 Key Features
- XGA (1024 x 768 pixels) resolution
- DE(Data Enable) only mode
- LVDS Interface with 1pixel/clock
- PSWG (Panel Standardization Working Group)
- Wide operating temperature
- optimized Sunlight Readability
- Industrial Application
- Amusement
- Vehicle
- pixel mm
