KPX-G1203B-K6400 - Buzzer

Datasheet Details

Part number	KPX-G1203B-K6400
Manufacturer	Unknown Manufacturer
File Size	701.36 KB
Description	Buzzer
Datasheet	KPX-G1203B-K6400 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
KPX-1200A	Buzzer	Ningbo
KPX-1200C	Buzzer	Ningbo
KPX-1200UB	Buzzer	Ningbo
KPX-1201A	Buzzer	Ningbo
KPX-1203A	Buzzer	Ningbo

Other Datasheets by Unknown Manufacturer

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

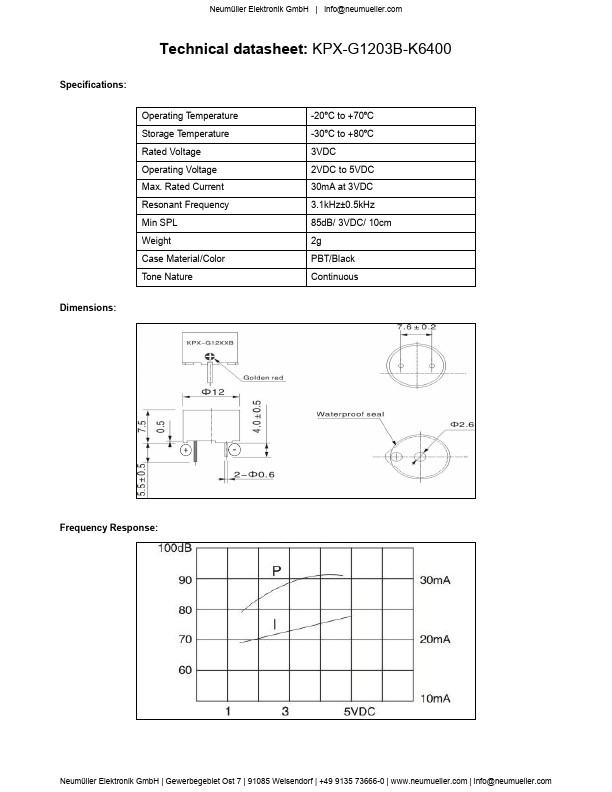

Neumüller Elektronik GmbH | info@neumueller.com Technical datasheet: KPX-G1203B-K6400 Specifications: Operating Temperature Storage Temperature Rated Voltage Operating Voltage Max. Rated Current Resonant Frequency Min SPL Weight Case Material/Color Tone Nature Dimensions: -20ºC to +70ºC -30ºC to +80ºC 3VDC 2VDC to 5VDC 30mA at 3VDC 3.1kHz±0.5kHz 85dB/ 3VDC/ 10cm 2g PBT/Black Continuous Frequency Response: Neumüller Elektronik GmbH | Gewerbegebiet Ost 7 | 91085 Weisendorf | +49 9135 73666-0 | www.neumueller.com | info@neumueller.
