MOC3042
DESCRIPTION
The MOC304_ Series are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode coupled with a monolithic silicon detector performing the functions of a zero crossing bilateral triac mounted in a standard 6 pin dual-in-line package. FEATURES l Options :10mm lead spread
- add G after part no. Surface mount
- add SM after part no. Tape&reel
- add SMT&R after part no. l High Isolation Voltage (5.3k VRMS ,7.5k VPK ) l Zero Voltage Crossing l 400V Peak Blocking Voltage l All electrical parameters 100% tested l Custom electrical selections available
7.62 6.62
7.62 4.0 3.0 0.5 13° Max 0.26
3.0 0.5 3.35
ABSOLUTE MAXIMUM RATINGS (25 °C unless otherwise noted) Storage Temperature -550C
- +1500C Operating Temperature -400C
- +1000C Lead Soldering Temperature 2600C (1.6mm from case for 10 seconds)
INPUT DIODE Forward Current 50m A Reverse Voltage 6V Power Dissipation 120m W (derate linearly 1.41m W/0C above 250C) OUTPUT PHOTO TRIAC Off-State Output Terminal...

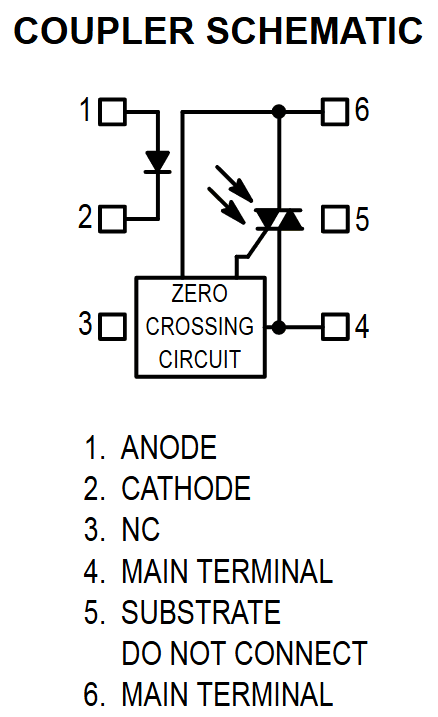

Representative MOC3042 image (package may vary by manufacturer)
