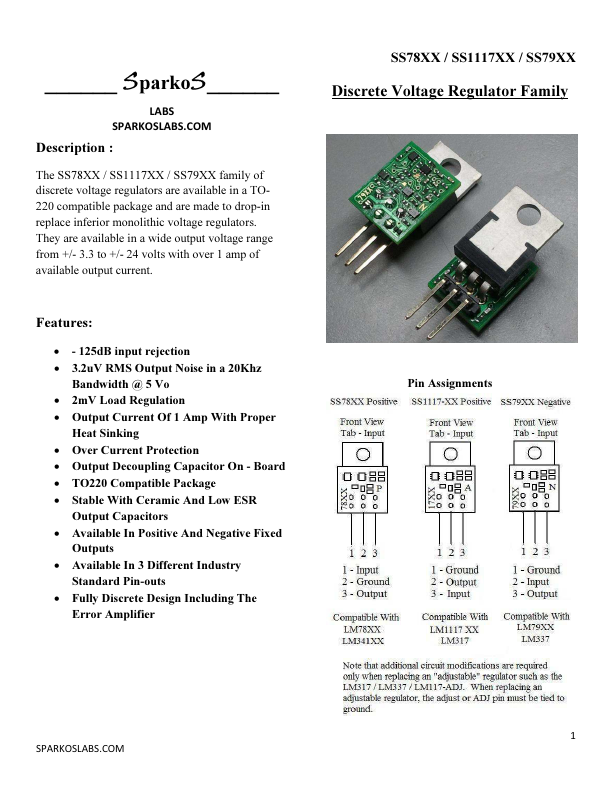

Description : The SS78XX / SS1117XX / SS79XX family of discrete voltage regulators are available in a TO220 patible package and are made to drop-in replace inferior monolithic voltage regulators. They are available in a wide output voltage range from +/- 3.3 to +/- 24 volts with over 1 amp of available output current. SS78XX / SS1117XX / SS79XX Discrete Voltage Regulator Family Features : - - 125d B input rejection - 3.2u V RMS Output oise in a 20Khz Bandwidth @ 5 Vo - 2m V Load Regulation - Output Current Of 1 Amp With Proper Heat Sinking - Over Current Protection - Output Decoupling Capacitor On - Board - TO220 patible Package - Stable With Ceramic And Low ESR Output Capacitors - Available In Positive And egative Fixed Outputs - Available In 3 Different Industry Standard Pin-outs - Fully Discrete Design Including The Error Amplifier Pin Assignments 1 SPARKOSLABS. SS78XX / SS1117XX / SS79XX Sparkos Labs SS78XX, SS1117XX and SS79XX Discrete Voltage Regulator Family All SS78XX Devices are Positive polarity, and the "XX" designates the output voltage. All SS1117XX Devices are Positive polarity, and the "XX" designates the output voltage. All SS79XX Devices are Negative polarity, and the "XX" designates the output voltage. Below is a table of standard output voltages and their respective device number. Any custom output voltage from +/- 3.3V to +/- 30V is possible. Contact Sparkos Labs for more information Device Number Polarity Output Voltage Board Marking Device Sticker SS783.3 Positive +3.3V SS7805 Positive +5V SS786.2...
