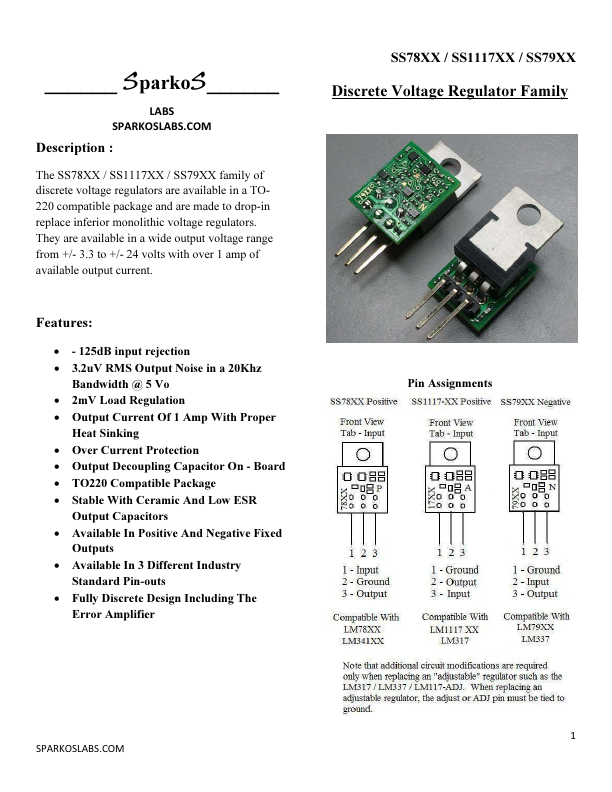

SS1117-6.2 Overview
Description
The SS78XX / SS1117XX / SS79XX family of discrete voltage regulators are available in a TO220 compatible package and are made to drop-in replace inferior monolithic voltage regulators. They are available in a wide output voltage range from +/- 3.3 to +/- 24 volts with over 1 amp of available output current.
Key Features
- 125dB input rejection
- 3.2uV RMS Output oise in a 20Khz Bandwidth @ 5 Vo
- 2mV Load Regulation
- Output Current Of 1 Amp With Proper Heat Sinking
- Over Current Protection
