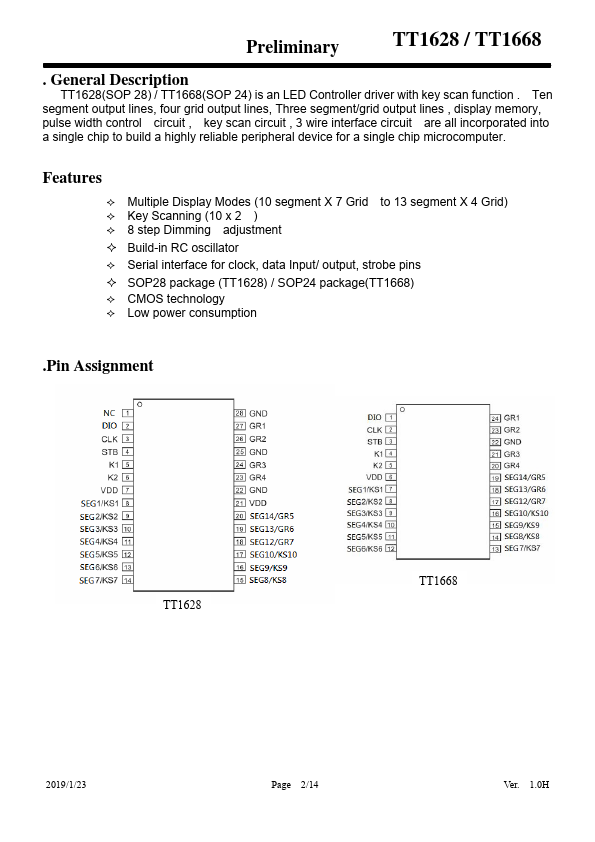

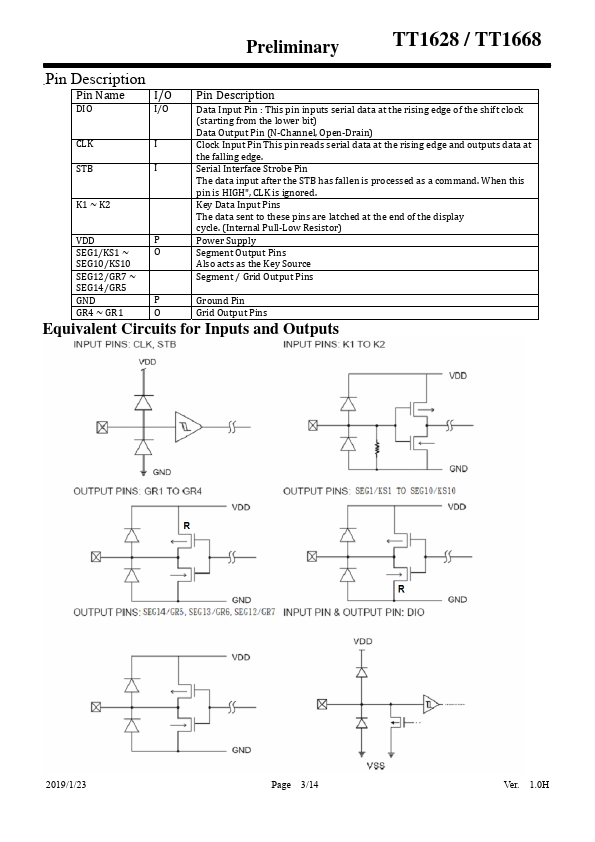

Description TT1628(SOP 28) / TT1668(SOP 24) is an LED Controller driver with key scan function . Ten segment output lines, four grid output lines, Three segment/grid output lines , display memory, pulse width control circuit , key scan circuit , 3 wire interface circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microputer. Features — Multiple Display Modes (10 segment X 7 Grid to 13 segment X 4 Grid) — Key Scanning (10 x 2 ) — 8 step Dimming adjustment — Build-in RC oscillator — Serial interface for clock, data Input/ output, strobe pins — SOP28 package (TT1628) / SOP24 package(TT1668) — CMOS technology — Low power consumption .Pin Assignment TT1628 2019/1/23 Pagej2/14 Ver.j1.0H Preliminary TT1628 / TT1668 .Pin Description Pin Name I/O Pin Description I/O Data Input Pin : This pin inputs serial data at the rising edge of the shift clock (starting from the lower bit) Data Output Pin (N‐Channel, Open‐Drain) Clock Input Pin This pin reads serial data at the rising edge and outputs data at the falling edge. Serial Interface Strobe Pin The data input after the STB has fallen is processed as a mand. When this pin is HIGH", CLK is ignored. K1 ~ K2 Key Data Input Pins The data sent to these pins are latched at the end of the display SEG1/KS1 ~ O cycle. (Internal Pull‐Low Resistor) Power Supply Segment Output Pins SEG10/KS10 Also acts as the Key Source SEG12/GR7 ~ Segment / Grid Output Pins SEG14/GR5 Ground Pin GR4 ~...
